Brand : Kirloskar

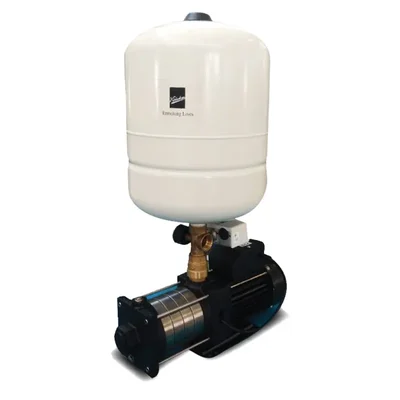

Kirloskar CPBS-84424V - 1.5HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)
SKU : RON-KBL-200111
MRP : ₹46900
₹30399
35% OFF!
-
1
+
8 people have bought this recently
Get Extra ₹456 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (CPBS-84424V) 1.5 HP Single Phase Motor Vertical Pressure Booster Pump
12 - 52 meters Head Range
20 to 140 LPM Discharge Rate
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar CPBS-84424V - 1.5HP Pressure Booster Pump with 24 Liter Tank (1 Year Warranty)

Features :
  • Compact Reliable and Silent : Dynamically balanced rotating parts, superior quality bearings and SS fabricated impellers with compact design ensures reliable and silent operations.
  • TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
  • Diaphragm Type Pressure Tank : Diaphragm type pressure tank made from high grade engineering material
  • Reliable & Durable Components : Reliable and durable peripheral parts such as Pressure Switch, Standardized Size of 5 Way Connector, and Italian make NRV and SS hose pipe.
  • Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.

Specifications :
  • Model No. : CPBS-84424V
  • Product Type : Vertical Pressure Booster Pump
  • Brand : Kirloskar
  • Power Source : Corded Electric
  • Wattage : 1.1 kW
  • Power Supply : 220V, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Rated Current : 8.5 Amp
  • Head Range : 39 to 171 Feet (12 - 52 meters)
  • No. of Outlet : 8 per Taps
  • Pressure Range : 2.4 - 4.4 Kg/Cm²
  • No. of Stages : 5
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  • Tank Capacity : 24 Liters
  • Discharge Rate : 20 to 140 LPM (1200-8400 LPH)

Materials of Construction :
  • Impeller : Stainless Steel
  • Diffuser : Stainless Steel
  • Motor Body : Aluminium Die Cast
  • Pump Shaft : Steel
  • Pump Stage Casting : Stainless Steel
  • Winding Material : Copper Winding
  • Suction & Delivery Casing : Cast Iron
  • Insulation : B Class
  • Protection : IP 44

Applications :
  • Consistent pressure at multi outlets
  • Multi jet shower panels
  • Washing machine, hot water geyser, gas geyser
  • Pressurized washing of vehicles
  • Kitchenware washing.

Warranty :
  • One year warranty on manufacturing defects only.
