Brand : Kirloskar
Kirloskar 1Hp Single Phase Self Priming Monoblock Pump, 40m Max. Head (MINI JALDAKSH (BRONZE) - 1 Year Of Warranty
SKU : TI-KM-12574
MRP : ₹7000
₹5549
21% OFF!
-
1
+
2285 people have viewed this recently
Get Extra ₹83 OFF on Prepaid Orders
Delivery By: Nov 4 - Nov 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

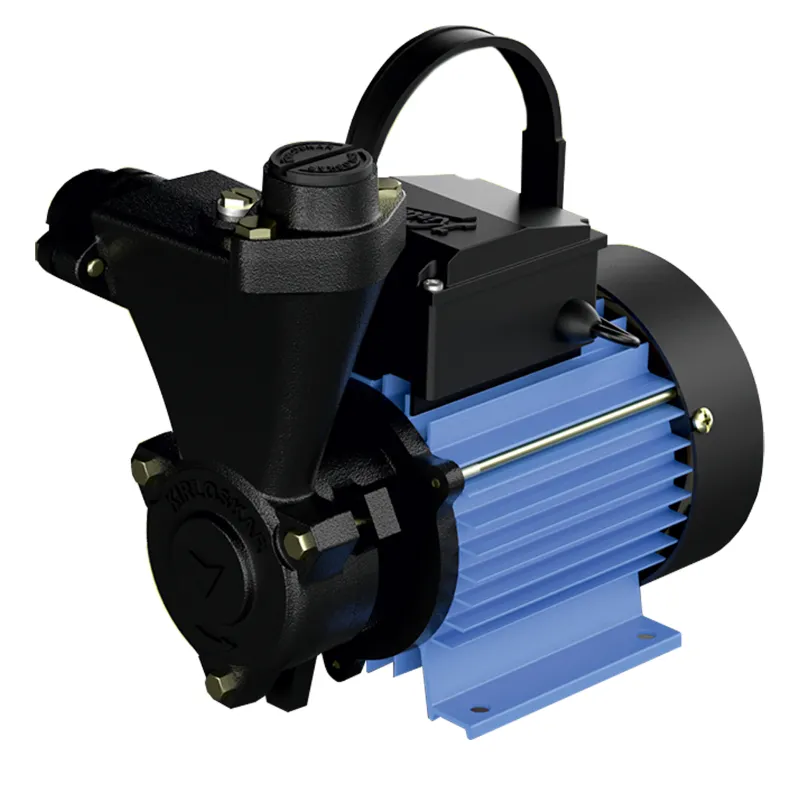

Kirloskar(MINI JALDAKSH (BRONZE)) 1.0 HP Self Priming Monoblock Pump
Max. Head 40 Meter
Max. Discharge Rate 3000 LPH
This Pump is suitable for gardening purpose, domestic water supply, construction sites etc.
1 Years Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 1 hp
  • Weight (Approx.) : 6.6 kg
  • Flow Rate : 50 lpm
  • Head : 40 meter
  • Model No : MINI JALDAKSH (BRONZE)
  • Product Type : Self Priming Monoblock Pump
  • Brand : KIRLOSKAR
  • Wattage : 0.75 kW
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  • Head Range : 6-40 Meter (20-131 Foot)
  • Discharge Range : 3000-750 LPH (50-13 LPM)
  • Insulation Type : B Class

Material Of Construction :
  • Impeller : Brass
  • Delivery Casing : Cast Iron
  • Motor Body : Aluminum
  • Shaft : Carbon Steel
  • Cover NDE : Aluminum
  • Mechanical Seal : Carbon Vs. Ceramic
Description
A self-priming monoblock pump integrates the motor and pump into a single unit and can automatically draw air from the suction line to initiate pumping without manual priming. It is widely used for domestic water supply, small-scale irrigation, and dewatering applications where reliable, hassle-free operation is needed.

Features

 :
  • High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • High Grade B - Class Insulation : Robust design to withstand higher temperatures reducing the chances of motor burning and ensures the reliability, safety and enhanced life.
  • Thermal Overload Protector (TOP) : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
  • Wide Voltage Range : The motor is designed to withstand wide voltage fluctuations from 180 to 260 volts and reduces chances of motor burning due to low/high voltage.
  • Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
  • High Suction Lift : The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
  • Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.

Applications

 :
  • Gardens and fountains
  • Feed water to RO plants
  • Domestic water supply
  • Water supply to overhead tanks in bungalows
  • Construction sites
  • Car washing
  • Lawn sprinklers

Warranty :
  • 1 Years Of Warranty On Manufacturing Defects Only
