Brand:  Kirloskar

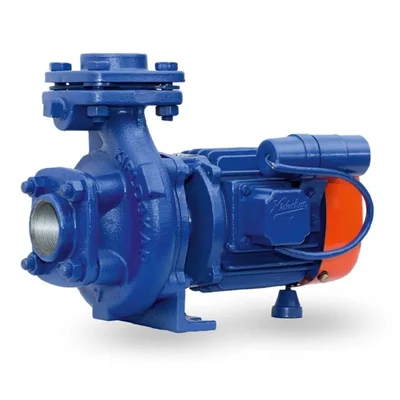

Kirloskar 2HP Single Phase Centrifugal Monoblock Pump, 12m Head, 50760 LPH, 80 x 80 mm (KDS-212N LV) - 1 Year Warranty

5.0 star

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (KDS-212N LV) 2 HP Single Phase Monoblock Pump

846-450 LPM Discharge Range

6 to 12 Meters Head Range

Suitable for Gardening, Lawn sprinklers, Domestic Purpose etc.

One Year Warranty.

Country of origin: India

Description

Kirloskar 2HP Single Phase Centrifugal Monoblock Pump, 12m Head, 50760 LPH, 80 x 80 mm (KDS-212N LV) - 1 Year Warranty

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 120 to 220 volts and reduces motor burning in case of low voltage.
• Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
• TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
• CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
• Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
• High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
• Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.

Specifications :

• Model No. : KDS-212N LV
• Product Type : Monoblock Pump
• Brand : Kirloskar
• Motor Power : 1.5 kW
• Power : 200 V, 50 Hz, AC Supply
• Electricity Connection : Single Phase

• Head Range : 6 - 12 Meter (20 - 39 Feet)
• Pipe Size (Suction x Delivery) : 80 x 80 mm

• Discharge Rate : 846-450 Liters Per Minute (50760- 27000 LPH)

Materials of Construction :

• Impeller : Cast Iron/Noryl
• Delivery Casing : Cast Iron
• Motor Body : Cast Iron
• Pump Shaft : Carbon Steel
• Sealing : Mechanical Seal

Applications :

• Gardening and small farm irrigation
• Lawn sprinklers
• Water supply for high rise buildings
• Domestic and community water supply
• Water transfer and circulation

Warranty :

• One Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 2 hp
• Weight (Approx.) : 44 kg
• Flow Rate : 846 lpm
• Head : 12 meter
