Brand : Kirloskar

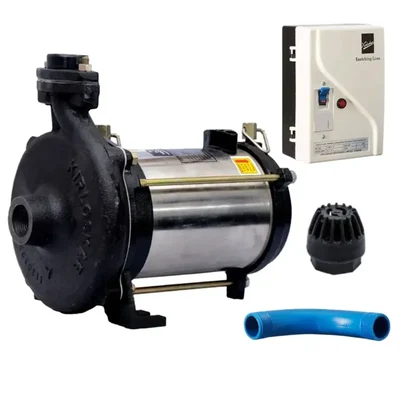

Kirloskar (KOSi-1.522 CP) 1.5 HP Single Phase Openwell Submersible Pump With Control Panel & 1 Year Warranty
SKU : RON-KBL-22034
MRP : ₹25400
₹17660
30% OFF!
-
1
+
6 people have bought this recently
Get Extra ₹265 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KOSi-1.522 CP) 1.5 Hp 1 Phase Open Well Submersible Pump
72ft Max. Head, 378 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar (KOSi-1.522 CP) 1.5 HP Single Phase Openwell Submersible Pump With Control Panel & 1 Year Warranty

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage.
  • Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
  • Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated
  • High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.

Specifications :
  • Model No. : KOSi-1.522 CP
  • Product Type : Openwell Submersible Pump
  • Brand : Kirloskar
  • Power Source : Corded Electric
  • Wattage : 1.1 kW
  • Power Supply : 210V, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • No load Speed : 2800 RPM
  • Head Range : 26 to 72 feet (8 - 22 meter)
  • Pipe Size (Suction x Delivery) : 50 x 40 mm
  • Discharge Rate : 378 - 90 LPM (22680-5400 LPH)

Materials of Construction :
  • Motor Body : Stainless Steel
  • Shaft Material : Stainless Steel
  • Impeller : Cast Iron / Noryl
  • Delivery Casting : Cast Iron
  • Insulation Class : B-Class
  • Protection : IP 68

Applications :
  • Domestic and community water supply.
  • Gardening and small farm irrigation.
  • Water fountains
  • Construction site.
  • Water supply to overhead tanks.

Warranty :
  • One Year Onsite Warranty.
