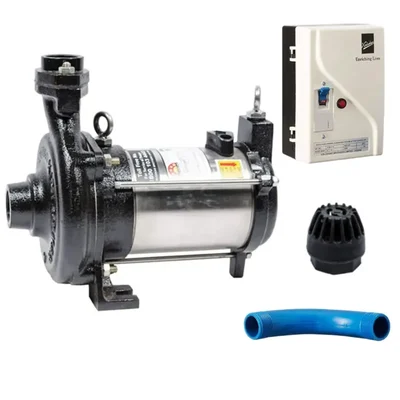

Kirloskar KOSi-0520 - 0.5HP Openwell Submersible Pump 59 ft max Head & 102 LPM (1 Year Warranty)

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

0.5 HP Single Phase Open Well Submersible Pump, KOSi-0520

39 to 59 feet (12 to 18 m) Head Range & 102 - 30 LPM Discharge Rate

1 Year Warranty

Description

Kirloskar KOSi-0520 - 0.5HP Openwell Submersible Pump 59 ft max Head & 102 LPM (1 Year Warranty)

Features :

• High efficiency and energy saving design.
• Lightweight and Compact design.
• Wide Voltage Range.
• Dynamically balanced rotating parts.
• Replaceable & Easy maintainable Wearing Parts.
• CED – Cathode Electro Deposition Coating.

• Advanced Water Cooled Motors Designs.


Specifications :

• Model No. : KOSi-0520
• Product Type : Openwell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• Motor Power : 0.5 HP (0.37 kW)
• Power Supply : 210V, AC Supply
• Electricity Connection : Single Phase

• No load Speed : 2740 RPM
• Max. Head Range : 39 to 59 feet (12 to 18 m)

• Suction x Delivery Size : 25 x 25 mm

• Max. Flow Rate : 102 - 30 LPM
• Weight : 12 Kg (Approx)

Materials of Construction :

• Motor Body : Stainless Steel
• Shaft Material : Stainless Steel
• Impeller : Cast Iron / Noryl
• Delivery Casting : Cast Iron
• Insulation Class : B-Class
• Protection : IP68

Warranty :

• One year warranty on manufacturing defects only


Application :

• Domestic and community water supply
• Gardening and small farm irrigation
• Water fountains & Construction site
• Water supply to overhead tanks
