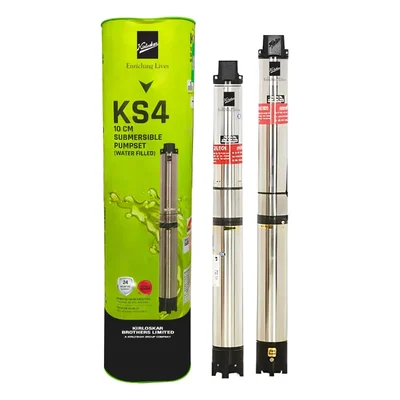

Kirloskar 3HP 12 Stage 100mm(4") 3Phase Water Filled Borewell Submersible Pump, 322ft Head- 2 Years Warranty (KS4E-3012)

Brand: Kirloskar

Kirloskar 3HP 12 Stage 100mm(4") 3Phase Water Filled Borewell Submersible Pump, 322ft Head- 2 Years Warranty (KS4E-3012)

Name: Kirloskar 3HP 12 Stage 100mm(4") 3Phase Water Filled Borewell Submersible Pump, 322ft Head- 2 Years Warranty (KS4E-3012)
Brand: Kirloskar
SKU: DK-KB-2101
Price: 25999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: DK-KB-2101

MRP : ₹29520 ₹25999

12% OFF!

22576 people have viewed this recently

Get Extra ₹390 OFF on Prepaid Orders

Delivery By: Dec 9 - Dec 11

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹25999 (Including GST)

MRP : ₹29520

12% OFF!

Get Extra ₹390 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

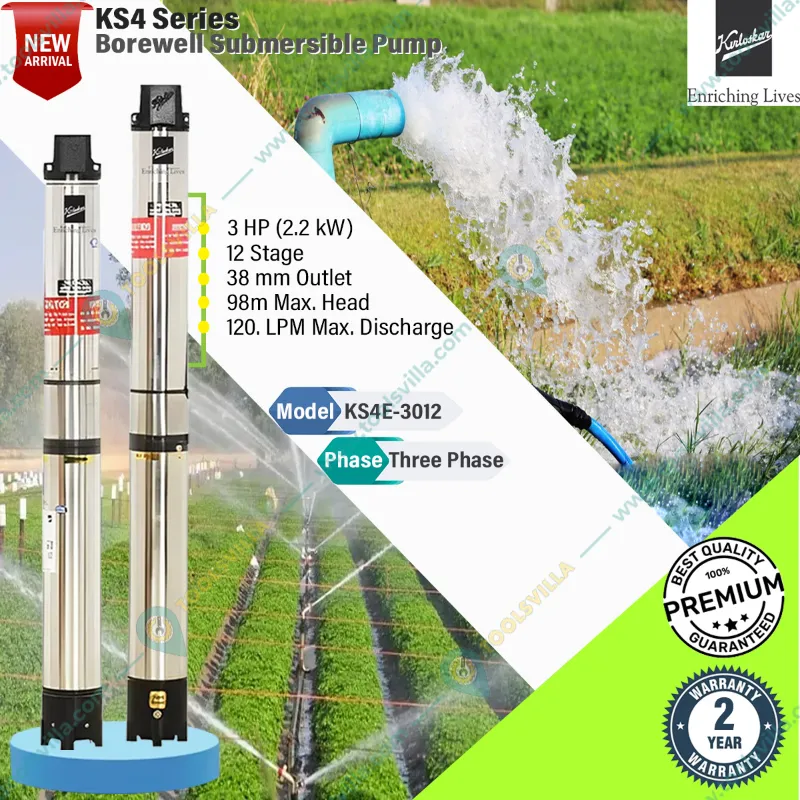

Kirloskar (KS4E-3012) 3 HP Submersible Pump

120LPM Max. Discharge Rate

98M Max. Head Range

10Cm (4 inch) Boring Size

2 Years Warranty

Country of origin: India

Brand: Kirloskar
Power : 3 hp
Weight (Approx.) : 35 kg
Flow Rate : 120 lpm
Head : 98 meter

Model No. : KS4E-3012
Product Type : Borewell Submersible Pump
Brand : Kirloskar
Wattage : 2.2 kW
No. of Stages : 12
Power Supply : 415V, 50 Hz, AC Supply
Electricity Connection : Three Phase
Cooling Type : Water Filled
Outlet Size : 38 mm
Current Rating : 6.9 Amp
Boring Size : 100mm (4 inch)
Max. Head : 98 Meter (322 Feet)
Max. Discharge Rate : 120 LPM (7200 LPH)
Insulation : B Class
Protection : IP 68
Winding Material : Copper

Material Of Construction :

Pump Housing : Stainless Steel
Pump Shaft : Stainless Steel
Motor Housing : Stainless Steel
Motor Shaft : Stainless Steel
Thrust Bearing : Carbon + Stainless Steel
Motor/Pump Bushes : Gun Metal
Impeller : Noryl
Diffuser : Noryl
NRV : Cast Iron
Suction : Cast Iron

Submersible pumps like the Kirloskar KS4 series have gained widespread popularity due to their numerous advantages over conventional above-ground pumps. By positioning the motor below the water level, these pumps eliminate the need for priming – a time-consuming process that involves filling the pump chamber with water before starting operation. Moreover, submersible pumps offer improved cooling efficiency compared to their above-ground counterparts. In this case, Kirloskar’s KS4 series pumps are equipped with water cooling systems that circulate water around the motor windings to dissipate heat generated during operation.

Features

Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 280 to 440 volts and reduces motor burning in low voltage
High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained
Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.

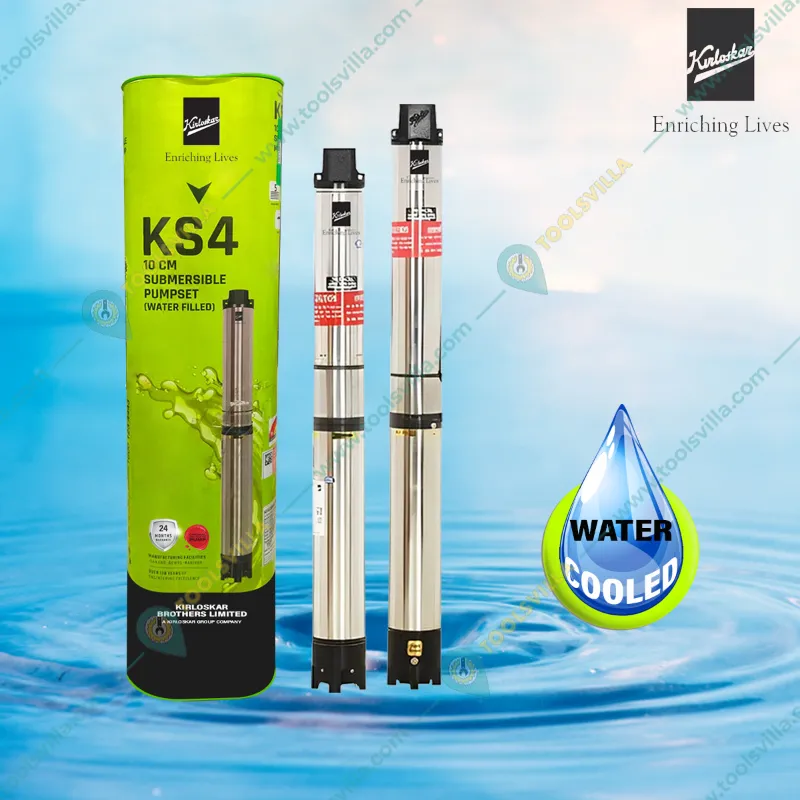

Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
