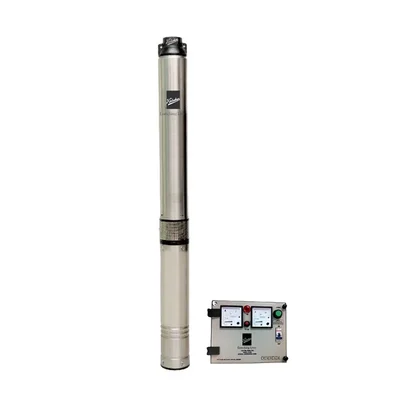

Kirloskar KP4 Jalraaj-1006 1 HP 6 Stage Oil Filled Borewell Pump with CP(1 Year Warranty)

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

1 HP (0.75 kW) Single Phase Oil-Filled  Borewell Submersible Pump with Control Panel

23 to 128 feet (7 to 39 meters) Head Range & 40-100 LPM Discharge Range

4 inch (100 mm) Boring size with 1 year warranty.

Description

Kirloskar KP4 Jalraaj-1006 1 HP 6 Stage Oil Filled Borewell Pump with CP(1 Year Warranty)

Features :

• It is designed such a way that gives high-efficiency and energy-saving

• All rotating parts that are dynamically balanced
• To prevent overloading, the design incorporates a number of features.
• It Is compact and lightweight
• Its efficiency that is more flat curve that can be used in horizontal application

Specifications :

• Model No. : KP4 Jalraaj-1006 CP
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source :  Corded Electric
• Motor Power : 1 HP (0.75 kW)
• Power Supply: 180-240V, AC Supply
• Electricity Connection : Single Phase
• Boring Size : 4 inch (100 mm)
• Motor Type : Oil Filled

• Max. Head Range : 23 to 128 feet (7 to 39 meters)
• Outlet Size : 32 mm
• No. of Stages : 6
• Current Rating: 6.7 Amp.
• Max. Flow Rate : 40-100 LPM

• Weight : 40Kg (Approx)

Materials of Construction :

• Pump Housing : SS
• Pump Shaft : SS
• Suction Bracket : C.I.FG-200
• Discharge Nozzle : C.I.FG-200
• Stage Bowl : SS
• Impellers : Noryl
• Diffusers : Noryl
• Strainer : SS
• Motor Housing : SS
• Motor Shaft : SS
• Motor Topshield : Cast Iron
• All Hardware : SS
• Winding : Copper

Warranty :

• One year warranty on manufacturing defects only.

Applications :

• Domestic and community water supply.

• Water supply for high rise building.
• Gardening and small farm irrigation.
• Construction site & ground water supply to water works.

Note :

• Borewell Submersible Pump comes with control panel board.
