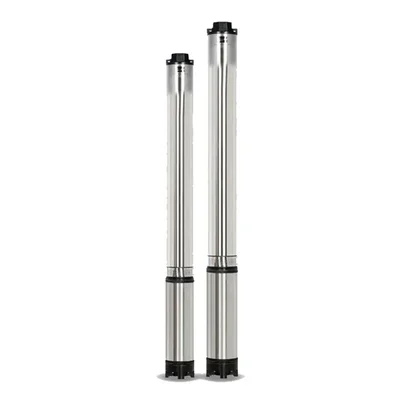

Kirloskar BIGFLOW-1008 - 1 HP 8 Stages Water Filled Borewell Pump(1 Year Warranty)

Easy Returns

Quality Assurance

Trusted Delivery

After Sales Assistance

Short Description

1 HP Single Phase Borewell Submersible Pump, BIGFLOW-1008

20 to 200 feet(6 to 61 meters) Head Range, 105 to 15 LPM Discharge Rate

4 Inch(100 mm) Boring Size with 1 Year Warranty

Description

Kirloskar BIGFLOW-1008 - 1 HP 8 Stages Water Filled Borewell Pump(1 Year Warranty)

Features :

• Wide voltage design & easy maintainable designs

• Design to prevent Overloading
• High Efficiency And Energy Saving Design
• Dynamically Balanced Rotating Parts
• Advanced Water Cooled Motors Designs
• Wide Voltage Motor Designs With 100% Copper Rotor

Specifications :

• Model No. : BIGFLOW-1008
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• Motor Power : 1 HP (0.75 kW)
• Power Supply : 180-240 V AC Supply
• Electricity Connection : Single Phase
• Boring Size : 4 Inch(100 mm)
• Motor Type : Water Filled

• Current Rating : 6.7 Amps
• Max. Head Range : 20 to 200 feet (6 to 61 meters)
• Outlet Pipe (Size) : 38 mm
• No. of Stages : 8
• Max. Flow Rate : 105 to 15 LPM
• Weight : 30 Kg (Approx)

Materials of Construction :

• Pump Housing : SS
• Pump Shaft : SS
• Suction Bracket : C.I.FG-200
• Discharge Nozzle : C.I.FG-200
• Stage Bowl : SS
• Impellers : Noryl
• Diffusers : Noryl
• Strainer : SS
• Motor Housing : SS
• Motor Shaft : SS
• Motor Topshield : Cast Iron
• All Hardware : SS
• Winding : Copper

Warranty :

• One year warranty on manufacturing defects only.


Applications :

• Domestic and industrial water supply.
• Firefighting systems in buildings and factories.
• Sprinkler and drip irrigation systems.
• Water for farmhouses, nurseries and gardening.
