Brand:  Kirloskar

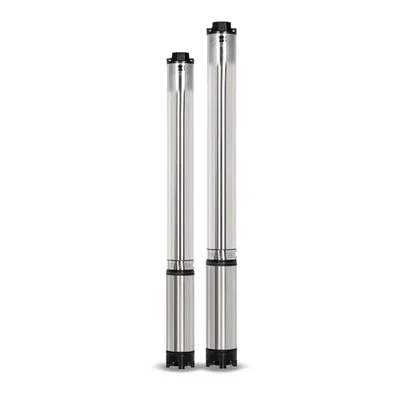

Kirloskar 1.5 HP 12 Stage 4 inch 3Phase Water Filled Borewell Submersible Pump, 318ft Head - 1 Year Warranty (KS4C-1512)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

1.5 HP Water Filled Three Phase Borewell Submersible Pump

4 inch (100 mm) Boring Size

318ft Max. Head

90 LPM Discharge Rate

1 Year Warranty

Country of origin: India

Description

Kirloskar 1.5 HP 12 Stage 4 inch 3Phase Water Filled Borewell Submersible Pump, 318ft Head - 1 Year Warranty (KS4C-1512)

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
• High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
• Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
• Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
• CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Specifications :

• Model No : KS4C-1512
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric
• Wattage : 1.1 kW
• Power Supply : 415 V, 50 Hz, AC Power Supply
• Electricity Connection : Three Phase
• Motor Type : Water Filled
• Current Rating : 4.0 Amp
• Boring Size : 4 Inch (100 mm)
• Max. Head : 318 Feet (97 Meters)
• Outlet Pipe Size : 38 mm
• No. of Stages : 12
• Max. Discharge Rate : 90 LPM (5400 LPH)
• Winding Material : Copper

Materials of Construction :

• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Thrust Bearing : Carbon + Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• NRV : Cast Iron
• Suction : Cast Iron

Applications :

• Domestic and community water supply
• Rural water supply
• Gardening and small farm irrigation
• Construction site
• Water supplies for high rise building

Warranty :

• One Year Onsite Warranty.

Specifications

 :

• Brand: Kirloskar
• Power : 1.5 hp
• Weight (Approx.) : 30 kg
• Flow Rate : 90 lpm
• Head : 97 meter
