Brand : Kirloskar

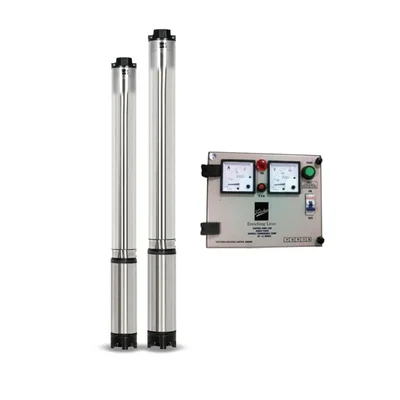

Kirloskar 2HP 6 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 105ft Head - 1 Year Warranty (KS4H-2006-CP)
SKU : DK-KB-2094
MRP : ₹39200
₹26000
34% OFF!
-
1
+
3675 people have viewed this recently
Get Extra ₹390 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
2 HP Single Phase Borewell Submersible Pump with Control Panel
32 meters Max. Head
420 LPM Max. Discharge Rate
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 2HP 6 Stage 4 inch 1Phase Water Filled Submersible Pump With CP, 105ft Head - 1 Year Warranty (KS4H-2006-CP)

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
  • High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.

Specifications :
  • Model No.: KS4H-2006-CP
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Power Source : Corded Electric
  • Wattage : 1.5 kW
  • Power Supply : 220 V, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Motor Type: Water Filled
  • Current Rating : 13.8 Amp
  • Boring Size : 4 Inch (100 mm)
  • Max. Head : 105 Feet (32 Meters)
  • Outlet Pipe Size : 65 mm
  • No. of Stages : 6
  • Max. Discharge Rate : 420 LPM (25200 LPH)
  • Winding Material : Copper

Materials of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Applications :
  • Domestic and community water supply
  • Rural water supply
  • Gardening and small farm irrigation
  • Construction site
  • Water supplies for high rise building

Warranty :
  • One year onsite Warranty
