Brand: Kirloskar
Kirloskar 1HP 6Stage 4" 1Ph Oil Filled Submersible Pump With CP, 157ft Head-1 Year Warranty (KP4 JALRAAJ UVA 60-1006 CP)
SKU: DK-KB-2082
4903 people have viewed this recently
Delivery By: Jul 29 - Jul 31
MRP : ₹15000 ₹11450
24% OFF!
4903 people have viewed this recently Delivery By: Jul 29 - Jul 31 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹11450 (Including GST)
MRP : ₹15000
24% OFF!
Get Extra ₹172 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Kirloskar 1 HP Single Phase Oil-Filled Borewell Submersible Pump with Control Panel

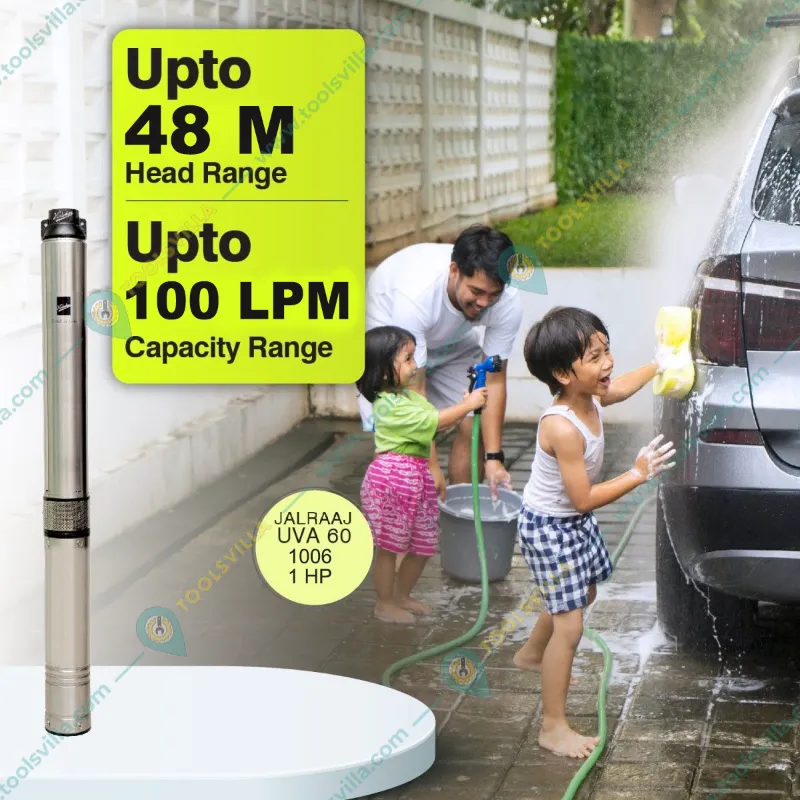

48 Meters Max. Head
100 LPM Max. Discharge
4 inch (100 mm) Boring size
1 Year Warranty.
Country of origin: India
Specifications
- Brand: Kirloskar
- Power : 1 hp
- Weight (Approx.) : 14.8 kg
- Flow Rate : 100 lpm
- Head : 48 meter
- Model No. : KP4 JALRAAJ UVA 60-1006 CP
- Product Type : Borewell Submersible Pump
- Power Source : Corded Electric
- Wattage : 0.75 kW
- Power Supply: 220V, 50 Hz, AC Supply
- Electricity Connection : Single Phase
- Boring Size : 4 inch (10 Cm)
- Cooling Type : Oil Filled
- Max. Head : 157 Feet (48 Meters)
- Outlet Size : 32 mm
- No. of Stages : 6
- Current Rating: 6.7 Amp.
- Max. Discharge Rate : 100 LPM (6000 LPH)
- Winding Material : Copper
Materials of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Motor Bearing : Ball Bearing
- Pump Bushes : NBR
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Description
The Kirloskar 1HP submersible pump is a powerful and efficient solution for a variety of water lifting applications. Designed for durability and performance, this pump is ideal for both residential and agricultural use, ensuring reliable water supply even in challenging conditions. Its innovative oil-filled design enhances cooling and efficiency, allowing it to operate smoothly over extended periods.

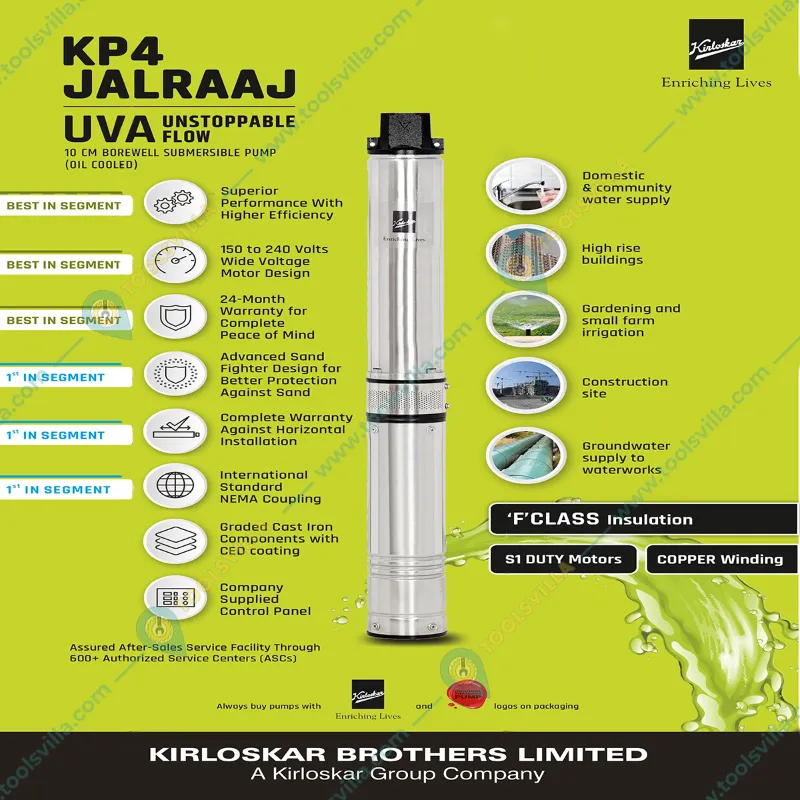

Features

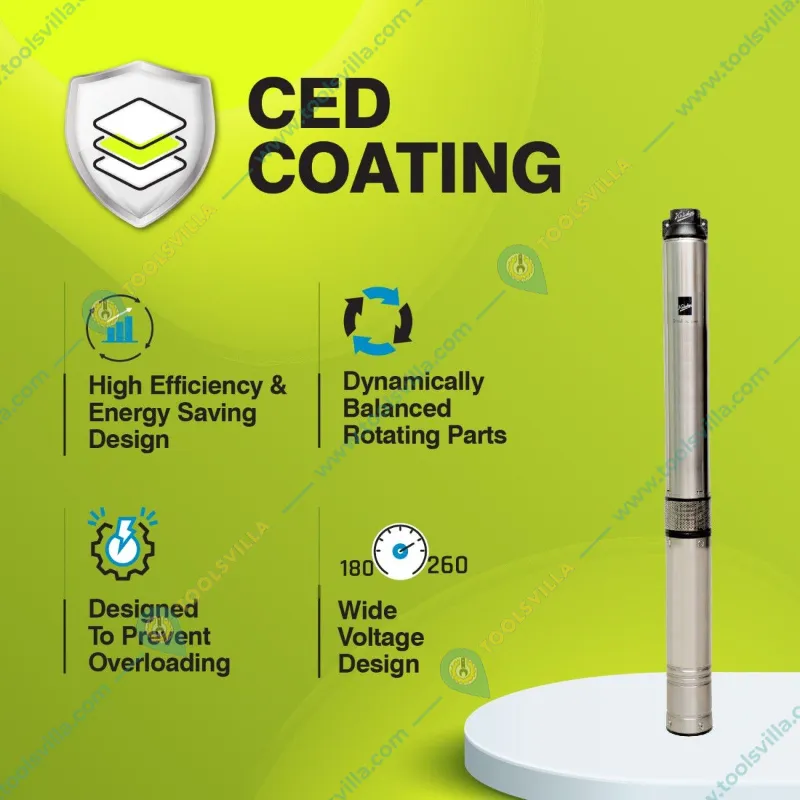

:- High Efficiency And Energy Saving Design : Higher output, lesser power consumption.
- Wide Voltage Design : The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage.
- Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation.
- Designed To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
- Flatter Efficiency Curve : Minimal drop in efficiency during entire operating range, resulting in lower operating cost.
- Suitable For Horizontal Applications : High capacity angular ball bearing motor construction suited to operate in the horizontal position.
Applications
:- Domestic and community water supply
- Water supply for high rise building
- Gardening and small farm irrigation
- Construction site
- Groundwater supply to waterworks
Warranty :
- One Year Onsite Warranty.
Note :

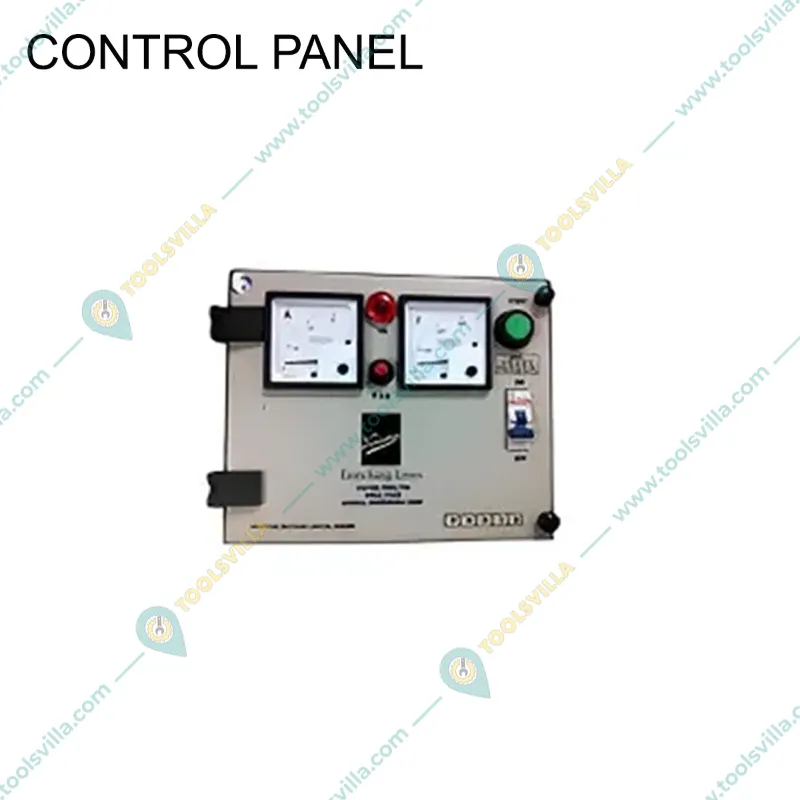

- Borewell Submersible Pump comes with control panel board.
