Brand : Kirloskar

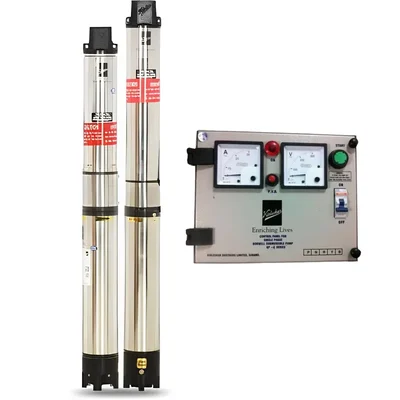

Kirloskar 1.5HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305ft Head - 1 Year Warranty(NEO 60-1512-CP)
SKU : AB-KBL-20231873
MRP : ₹32900
₹22999
30% OFF!
-
1
+
1429 people have viewed this recently
Get Extra ₹345 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 1.5 HP (1.1 kW) Borewell Submersible Pump With Control Panel
93 meters Max. Head
105 LPM Max. Discharge Rate
1 Year Warranty
Country of origin: India
Specification
Description
Kirloskar 1.5HP 4 Inch 1Ph Water Filled Borewell Submersible Pump With CP, 305ft Head - 1 Year Warranty(NEO 60-1512-CP)

Features :
  • Wide Voltage Range Operability : The voltage range is 180 - 240 Volts. Protects the motor from burning due to lower/higher voltage
  • High Efficiency and Energy-saving Design : Higher output, lesser power consumption
  • Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
  • Longer and Trouble-Free Life : High-grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, and 99.9 % pure Copper Winding Wires for longer and trouble-free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating, and facilitates smoother and trouble-free operation for the years.
  • Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protect the pump and motor bushes to perform well in sandy borewells, and increase the pump set life.
  • CED - Cathodic Electro Deposition Coating : Better resistance against corrosion
  • Nationwide Service Network : Easy availability of spares and prompt after-sales services through nationwide company Authorised Service Centers

Specifications :
  • Model No. : NEO 60-1512
  • Product Type : Borewell Submersible Pump
  • Brand : Kirloskar
  • Voltage : 180 - 240 Volts, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Wattage : 1.1 kW
  • Rated Current : 11.5 Amp
  • Cooling Type : Water Cooled
  • Insulation : Class B
  • Protection : IP 68
  • No. of Stages : 12
  • Outlet Size : 32 mm
  • Borewell Size : 100 mm (4 inch)
  • Max. Head : 305 feet (93 meters)
  • Max. Discharge Rate : 105 LPM (6300 LPH)
  • Winding Material : Copper

Accessories :
  • Control Panel

Materials of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Applications :
  • Domestic and community water supply
  • Rural water supply
  • Gardening and small farm irrigation
  • Construction site
  • Water supplies for high rise building

Warranty :
  • 1 Year on site Warranty
