• Model No. : KK-33CI3
• Body Material : Cast Iron
• Pump Material : Brass
• No. of Ball Cock : 3 pcs (10 mm each)
• Required Motor : 2 HP to 3 HP
• Required Engine : 6.5 to 7 HP
• Pump Speed : 800 - 1000 RPM
• Output Pressure : 28 kg/cm²
• Suction Volume : 30 - 40 L/min
• Pump Oil (20w40 Grade) : 900 ml
• No. of Piston : 3
• Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
• Max Hose Pipe Can Be Connect : 100 meter

Features

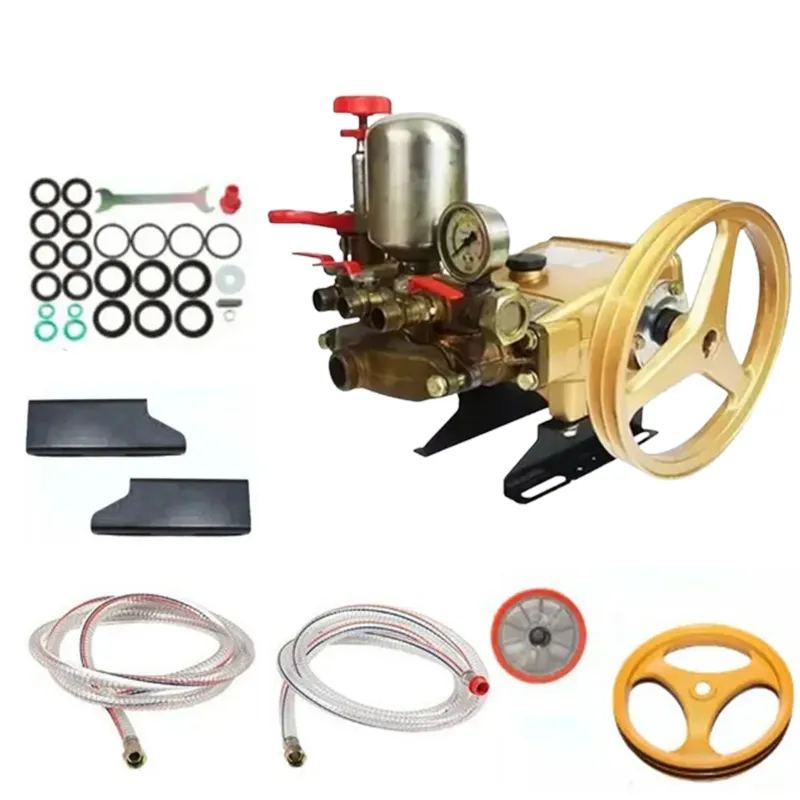

• High Output Pressure: The Kisankraft KK-33CI3 HTP Sprayer delivers an impressive output pressure of 28 kg/cm², ensuring effective spraying for various agricultural applications.
• Efficient Suction Volume: With a suction volume of 30 to 40 L/min, this sprayer allows for quick and efficient filling, enhancing productivity during operation.
• Durable Design: Featuring a cast iron head and three 10 mm ball cocks, the sprayer is built for longevity and reliability, making it suitable for heavy-duty use in diverse farming environments.

Accessories

• Suction Hose Pipe
• Overflow Hose Pipe
• Pulley
• Filter
• Tool Kit & Washer
• User Manual

Applications

• Vehicles (cars, bikes, etc.) Washing.
• Agriculture spray in big farmland.
• Pressure cleaning.

Usage

• Mount the motor with suitable engine or electric motor
• Attach the inlet pipe, overflow pipe, and hose pipe.
• Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
• Be sure about safety precautions.
• Do your work as per your needs.
