Brand : Globe

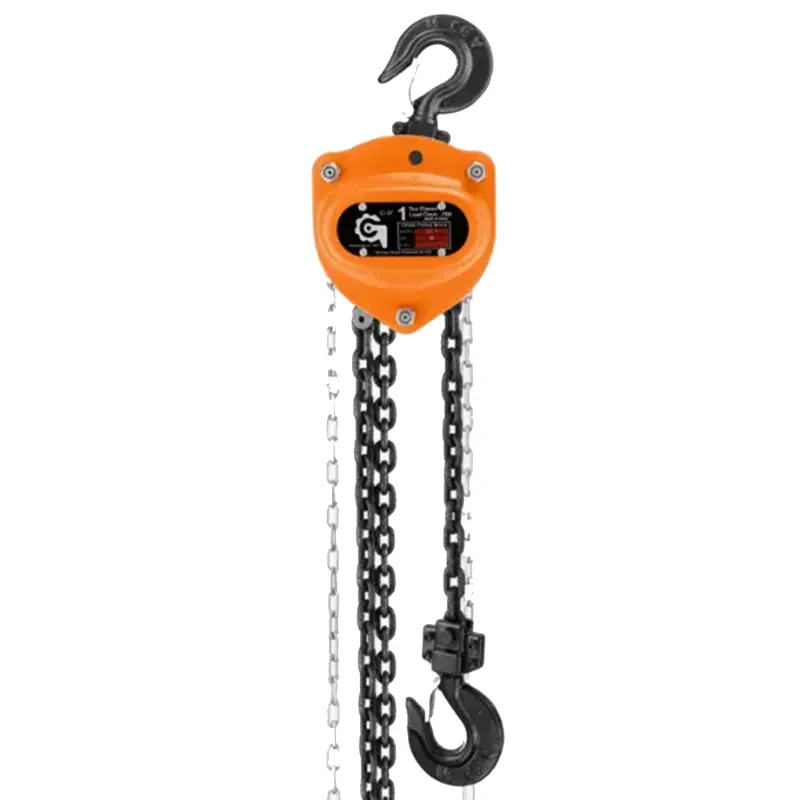

Globe Classic Series 1 Ton ISI Mark Chain Pulley Block, 3 Meter Lift Single Fall- 12 Months Warranty
SKU : SG-PB-2040
MRP : ₹9400
₹6730
28% OFF!
-
1
+
1200 people have viewed this recently
Get Extra ₹101 OFF on Prepaid Orders
Delivery By: Jun 28 - Jun 30
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Classic Series 1 Ton Chain Pulley Block
3 Meter Standard Lifting Height
Modular Design and High Performance
Low Headroom, Light weight, compact and durable
Country of origin: India
Specification
Description
Globe Classic Series 1 Ton Chain Pulley Block, 3 Meter Lift Single Fall- 12 Months Warranty

Features :
  • Confirming to IS 3832 – 2005
  • Modular Design and High Performance & Life of powder coated components.
  • 100 % Designed and Manufactured in India.
  • Low Headroom, Light weight, compact and durable, minimized hand effort,
  • Manufactured & assembled on advanced Production processes which ensures Zero defects.
  • Passed through Multilevel Quality Checks.

Salient Feature :
  • Load chain sprocket : Steel recommended as per IS 3832, ultra fine quality fully pocketed cast steel & precisely machined to suit calibrated load chain & roller bearing for free rotation, reducing effort for lifting. Improved life cycle and smooth running.
  • Hook : Heavy duty steel forged compact hook for top& bottom hook assembly with safety latch, capable to withstand shock loads manufactured as per IS 15560-2005.
  • Safe braking arrangement : Self-actuating screw disc type mechanical braking arrangement with non-asbestos based brake disc provides long lasting and high performance.
  • Gear Set : Highly efficient, compact and hard wearing gears manufactured from alloy steel, precisely machined and processed.
  • Triple protection cover : Heavy duty steel coated cover protects from atmospheric conditions, external shocks and improves life of complete chain block.
  • Chain guide roller : Double chain guide rollers ensures accurate alignments & smooth movement of load chain.
  • Ratchet & pawl arrangement : 2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.
  • Bearing : 2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.

Specification :
  • Model No : CL1S
  • Product Type :  Chain Pulley Block
  • Brand : Made In India
  • Standard lifting height (m) : 3
  • Load Chain Diameter  : 8 mm
  • Hand Chain Diameter : 5 mm
  • Pitch : 19 mm
  • Running test load : 1250 Kg (1.25 ton)
  • Headroom h (mm) : 410
  • No. Of fall : 1
  • Load chain & pitch (mm) : 6.3X19
  • Hand effort in (kg) : 25
  • Dimension A (mm) : 172
  • Dimension B (mm) :155
  • Dimension C (mm) : 27
  • Dimension D (mm) : 36
  • Packing measurement (LxWxH) (cm) : 27x19x17
  • Extra weight per meter of extra lift (kg) : 1.6

Application :
  • Petroleum Refineries
  • Chemical plants
  • Warehouse
  • Coal mines
  • Gas & power plants

Warranty :
  • 12 Months Manufacturer Warranty.

Note :
  • The video shown are for illustration purposes only and may not be an exact representation of the product. Color and Shape of the product may vary.
