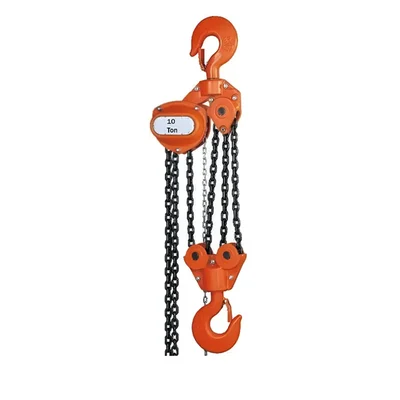

HT 10 Ton*3 meter Chain Pulley Block With 3 Meter standard Lift - Four Fall

4.0

• Model No. : 10T
• Product Type : Chain Pulley Block
• Brand : HT
• Running Test Load : 1500 Kg (1.5 Ton)
• Standing Lifting Height : 3 meter
• Load Chain Length : 3 meter
• No. of Fall : 4
• Load Chain Diameter : 10 mm

• Material : Alloy Steel
• Hand Chain Diameter : 6 mm
• Working : Manual
• Extra Weight Meter of Extra Lift : 9.8 kg
• Packaging Type : Wooden Box

Features

• Reduces and Minimizes the Lifting forces up to almost 35% and makes the Chain Blocks work at higher speeds,
• These Chain Blocks are Made from the Highest Quality Hardened Triple Spur Gears, Grade 80 Alloy Steel Load Chains and Zinc Plated Hand Chains.
• Made by special new technology of low effort and high-speed mechanism
• Meets all the Required world Standards for Lifting Chain Blocks
• Lightweight and High Strength Grade 80 Alloy Steel Chain
• Compact Design Makes it Eligible for Low Head Room applications.
• Reinforced Double Pawl Brake System and Large Diameter Pawl Springs make higher braking efficiency.
• Open Frame design makes it easy for maintenance and periodic inspection.

Applications

• Suitable for a Wide Range of Applications for lifting materials which Include Construction, Manufacturing, Workshops, and warehouses.
