Brand: Made in India

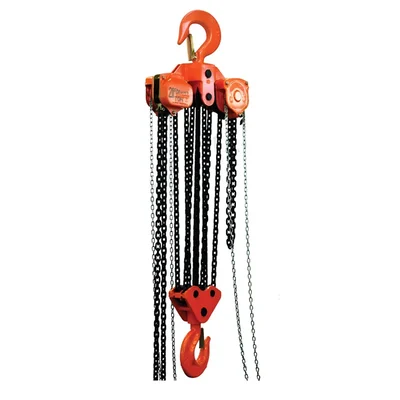

Premium Quality 20 Ton Chain Pulley Block with Chain, 3 Meter Lift - 8 Fall
SKU: AB-PB-2045
Regular Price : ₹157911
Offer Price : ₹129640 (Including GST)
Get extra ₹3,889 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
8 Fall 20 Ton Load Capacity Chain Pulley Block
Multiple Bearing Mechanism
Running Test Load : 30 Ton
Description
Premium Quality 20 Ton Chain Pulley Block with Chain, 3 Meter Lift - 8 Fall
Description :
- Chain Pulley Blocks are quite putative for its longevity and robust quality. Its demand is constantly uprising because of the superiority and attributes it bear within.Comes with 3 mtr lift.
Features :
- Reduces and Minimizes the Lifting forces up to almost 35% and makes the Chain Blocks work on higher speeds,
- These Chain Blocks are Made from the Highest Quality Hardened Triple Spur Gears, Grade 80 Alloy Steel Load Chains and Zinc Plated Hand Chains.
- Made by special new technology of low effort and high speed mechanism
- Meets all the Required world Standards for Lifting Chain Blocks
- Light weight and High Strength Grade 80 Alloy Steel Chain
- Compact Design Makes it Eligible for Low Head Room applications.
- Reinforced Double Pawl Brake System and Large Diameter Pawl Springs makes higher braking efficiency.
- Open Frame design makes it easy for maintenance and periodic inspection.
Specifications :
- Model No. : 20T
- Product Type : Chain Pulley Block
- Brand : Made In India
- Power Source Type : Hand Operated
- Load Capacity : 20 Ton
- Running Test Load : 30 Ton
- Standing Lifting Height : 3 m
- Chain Length : 24 meter
- Load Chain Diameter : 10 mm
- Extra Weight Meter of Extra Lift : 19.6 kg
- Effort Required : (414 x 2) N
- Dimension (A x B x C x D x K) : (215 x 650 x 890 x 110 x 85) mm
- Weight : 116 kg (Approx)
