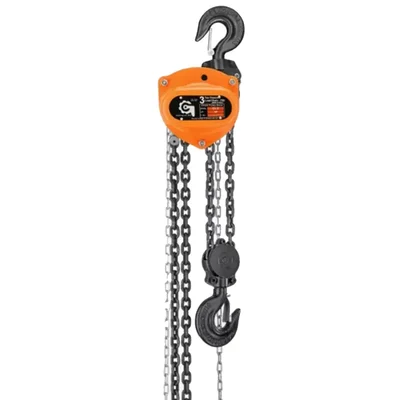

Globe Classic Series 3 Ton Chain Pulley Block, 3 Meter Lift Double Fall- 12 Months Warranty
SKU: SG-PB-2042
Regular Price : ₹17660
Offer Price : ₹14300 (Including GST)
Get extra ₹429 Discount (On Checkout)
Qty:
Easy Returns
Quality Assurance
Trusted Delivery
After Sales Assistance
Short Description
Classic Series 3 Ton Chain Pulley Block
3 Meter Standard Lifting Height
Modular Design and High Performance
Low Headroom, Light weight, compact and durable
Description
Globe Classic Series 3 Ton Chain Pulley Block, 3 Meter Lift Double Fall- 12 Months Warranty
Features :
- Confirming to IS 3832 – 2005
- Modular Design and High Performance & Life of powder coated components.
- 100 % Designed and Manufactured in India .
- Low Headroom, Light weight, compact and durable, minimized hand effort,
- Manufactured & assembled on advanced Production processes which ensures Zero Defect.
- Passed through Multilevel Quality Checks.
Salient Feature :
- Load chain sprocket : Steel recommended as per IS 3832, ultra fine quality fully pocketed cast steel & precisely machined to suit calibrated load chain & roller bearing for free rotation, reducing effort for lifting. Improved life cycle and smooth running.
- Hook : Heavy duty steel forged compact hook for top& bottom hook assembly with safety latch, capable to withstand shock loads manufactured as per IS 15560-2005.
- Safe braking arrangement : Self-actuating screw disc type mechanical braking arrangement with non-asbestos based brake disc provides long lasting and high performance.
- Gear Set : Highly efficient, compact and hard wearing gears manufactured from alloy steel, precisely machined and processed.
- Triple protection cover : Heavy duty steel coated cover protects from atmospheric conditions, external shocks and improves life of complete chain block.
- Chain guide roller : Double chain guide rollers ensures accurate alignments & smooth movement of load chain.
- Ratchet & pawl arrangement : 2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.
- Bearing : 2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.
Specification :
- Model No : CL2D
- Product Type : Chain Pulley Block
- Brand : Made In India
- Capacity (ton) : 3
- Standard lifting height (m) : 3
- Running test load (ton) : 3.75
- Headroom h (mm) : 580
- No. Of fall : 2
- Load chain & pitch (mm) : 8X24
- Hand effort in (kg) : 37
- Dimension A (mm) : 220
- Dimension B (mm) : 178
- Dimension C (mm) : 38
- Dimension D (mm) : 50
- Packing measurement (LxWxH) (cm) : 43X34X30
- Net Weight (Kg) : 26.5
- Extra weight per meter of extra lift (kg) : 3.0
Application :
- Petroleum Refineries
- Chemical plants
- Warehouse
- Coal mines
- Gas & power plants
Warranty : 12 Months Manufacturer Warranty.
