Brand: Generic (Imported)

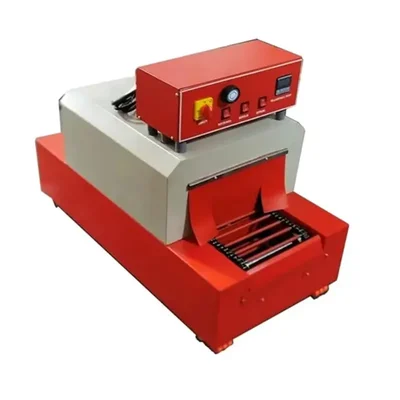

Heavy Duty Low Table Thermal Shrink Packaging Machine 3kW
SKU: JS-SE-20211307
₹34000 (Including GST)
MRP : ₹39500
Get extra ₹510 Discount (On Checkout)
Delivery By: May 5 - May 7
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
20" x 8" x 6"(50.8 x 20.32 x 15.24 cm) Low Table Shrink Packaging Machine
Heater : 2800 Watt & 3 kW Power Consumption
Packaging Speed : 6 Sec
Country of origin: China
Description
This machine is used for wrapping single as well as group of products. In these machines, LDP or PVC. Shrink film is wrapped around the product. Hot air is controlled by pyrometer for tight & temper proof over wrap. This also protects the box and product from damage during transit.
Features
:- Fast, Smooth User friendly operation with easy maintenance
- Low power consumption
- High-Temperature Silicon sleeves filled heavy Conveyor
- Digital Deviation Display
- Thermostatic Heat Control
- Fix/Variable Conveyor Speed Backed-on Powder Coating, All Steel Construction.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 45 kg
- Material : Mild Steel Powder Coated
- Voltage : 440V
- Phase : Three Phase
- Packaging Material : PVC, PP, POF (Shrinkable Plastic)
- Heater : 2800 Watt
- Power Consumption : 3 kW
- Chamber/Tunnel Dimensions (L x W x H) : 20 x 8 x 6 Inch (50.8 x 20.32 x 15.24 cm)
- Conveyor Speed : Variable
- Packaging Speed : 6 Sec
- Automation Grade : Semi-Automatic
- Machine Dimensions (L x W x H) : 36 x 18 x 28 Inch (91.44 x 45.72 x 71.12 cm)
Usage
:1. Setup the Machine :
- Place the thermal shrink packaging machine on a stable, flat surface.
- Ensure that the machine is connected to a power source.
2. Prepare the Product :
- Place the product you want to package into a suitable shrink film bag.
- Make sure the bag is large enough to accommodate the product with some extra space for sealing.
3. Adjust Settings :
- Turn on the machine and adjust the temperature settings according to the type of shrink film being used.
4. Load Products :
- Place the prepared product with the shrink film bag onto the machine’s conveyor for sealing.
- Ensure that products are spaced adequately to allow for proper sealing and shrinking.
5. Start Operation :
- Activate the machine by pressing the start button.
- Once sealed, products will move through the heating chamber where hot air will cause the film to shrink tightly around each item.
6. Collect Finished Products :
- Once packaged, collect your finished products from the output area of the machine.
Maintenance :
- Inspect the machine daily for any signs of wear or damage.
- Monitor the shrink tunnel temperature to avoid overheating, which can cause burn holes in the film.
Applications
:- Food Packaging : It is commonly used to package food items, ensuring freshness and protection from contaminants.
- Beverage Packaging : This machine can effectively wrap beverage containers, providing stability during transport and storage.
- Consumer Goods : It is suitable for packaging various consumer products, including electronics, cosmetics, and household items, enhancing their shelf appeal.
- Pharmaceuticals : The machine is utilized in the pharmaceutical industry to package medicines securely, maintaining hygiene standards.
