Brand: LuxMed

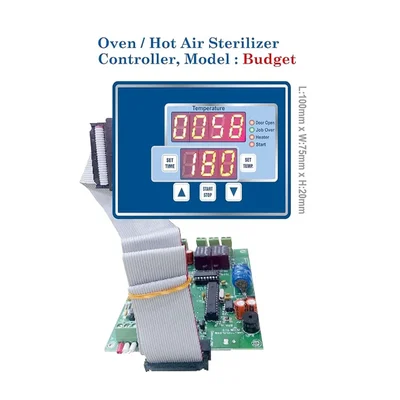

LuxMed 230V Hot Air Sterilizer Microprocessor Oven Controller Board
SKU: TB-LU-75008
Estimated Delivery By: Jul 1 - Jul 3
MRP : ₹4500 ₹4459
1% OFF!
Estimated Delivery By: Jul 1 - Jul 3 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4459 (Including GST)
MRP : ₹4500
1% OFF!
Get Extra ₹67 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
The LuxMed is a 230V microprocessor-based controller board tailored for automated hot air oven and dry heat sterilizer systems operating between 1°C and +330°C.
Country of origin: India
Specifications
- Brand: LuxMed
- Operating Voltage: 230V AC, 50 Hz
- Temperature Range: 1°C to +330°C
- Sensor Interface Type: PT-100, 3-Wire, R WW configuration
- Control Layout: Ergonomic Display with Touch Button
- Connectivity: USB Storage, Direct Printer Interface, CFR/PC Link Form Factor Enclosure
- Dimensions (LWH): 237 mm x 92 mm x 50 mm Ingress
- Protection Rating: IP21
- Hardware Framework: Microprocessor-based motherboard with 256 MB Flash Memory
Description
The LuxMed is an advanced micro-controller board designed for laboratory hot air ovens and dry heat sterilizers. Developed by Luxlighting Technology, this device automates high-temperature sterilization routines with precise monitoring. It features an integrated FND/LED or LCD interface configured for ergonomic touch control. It displays independent "Set" versus "Real-Time" readings for both temperature and process duration. Engineered for regulatory and industrial compliance, it incorporates extensive event logging alongside flexible multi-protocol data connectivity to manage modern laboratory instrumentation demands safely.
Features
:- Intelligent Automation: The processing timer triggers strictly when your target temperature is reached, executing a clean system-shutdown once the cycle finishes.
- Multi-Channel Event Logging: Active diagnostics look for sensor drop-outs, door disturbances, power disruptions, and thermal drift.
- Dual-Parameter Tracking: Dedicated visual matrices track target vs. actual values across time and temperature zones concurrently.
- Versatile Data Output: Built-in hooks export data directly via local hardware printers, standard USB drives, or PC links mapped to CFR compliance rules.
- Integrated Safety Audio: Configurable high and low thresholds route out to a local buzzer alarm during structural deviations.
Applications
:- Dry Heat Sterilization Control: Managing deep heat parameters to eliminate microbial strains from medical instruments, glass laboratory dishes, and non-moist materials.
- Laboratory Glassware Drying: Orchestrating moisture evaporation sequences within standard laboratory ovens without degrading delicate equipment.
- Material Science Thermal Analysis: Handling consistent long-term baking profiles up to +330°C for engineering material stress tests.
