Brand: Generic ( Made in India )

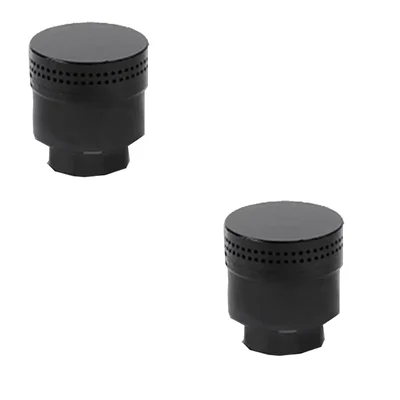

Pack of 2 Moon (M 22) Side Drilled Gas Burner Head
SKU: TI-PO-38538
Delivery By: Dec 26 - Dec 28
MRP : ₹1490 ₹999
33% OFF!
Delivery By: Dec 26 - Dec 28 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹999 (Including GST)
MRP : ₹1490
33% OFF!
Get Extra ₹15 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Pack of 2 Moon (M 22) Side Drilled Gas Burner Head
Country of origin: India
Specifications
Description
These high pressure burners are recommended for heating flat surface vessels. The produce sunflower shaped flame. Working pressure should not be varied by more than 0.07 kgf/cm (+1psig). Use of these burners at pressure higher than 0.42 kgf/cm (6 psig), will result in wastage of gas. At a pressure of 20 psig(1.40kgf /cm:), the gas consumption per hour will be double. The nomenclature M-22 and M-35 is derived from the gas consumption, which is 2.2 lb/hr for M. 22 and 3.5 lb/hr for M.3.5, while M stands for Marguerite. The burner rated heat outputs are valid for altitudes upto 2000 ft above sea level. If altitude is more than 2000 ft, rated heat outputs should be reduced 4 4% per extra 1000 ft altitude.
Features
:- Head Diameter : 62 mm ( 2.45 Inches )
- Optimum Working Pressure : 0.3 Kg/Cm2
- Psig : 4.5
- Consumption/Hour : 900 g/2.0 Ibs
- Rated Heat Output : 10,100 Kcal/Hour
- Btu/hr : 40,000
