Brand : Generic ( Made in India )
Pack of 2 Moon (M 22) Side Drilled Gas Burner With Heavy Assembly
SKU : TI-MM-38536
MRP : ₹3980
₹2149
46% OFF!
-
1
+
Get Extra ₹32 OFF on Prepaid Orders
Delivery By: Aug 27 - Aug 29
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

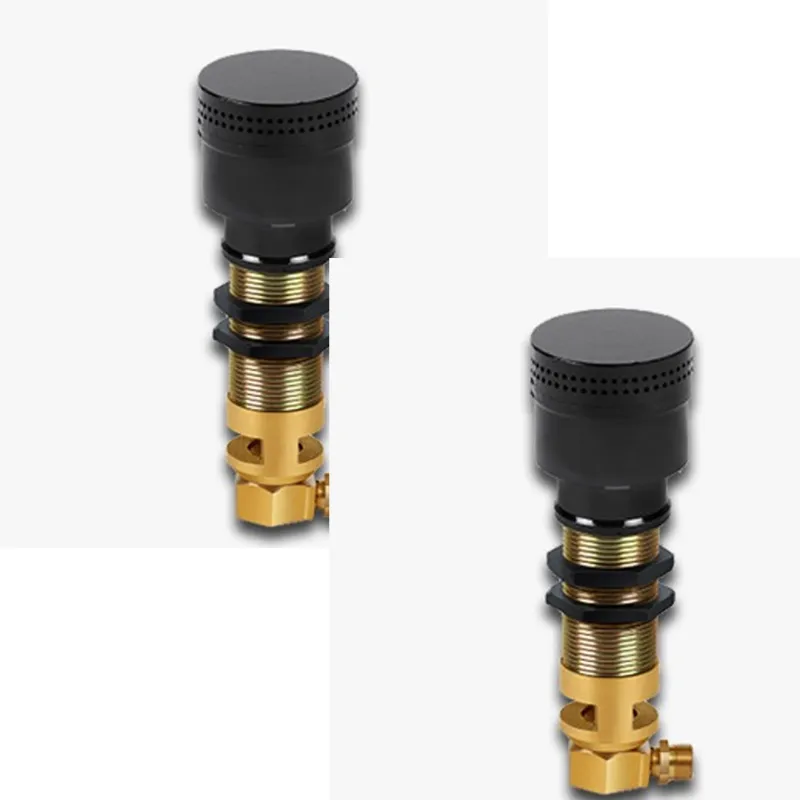

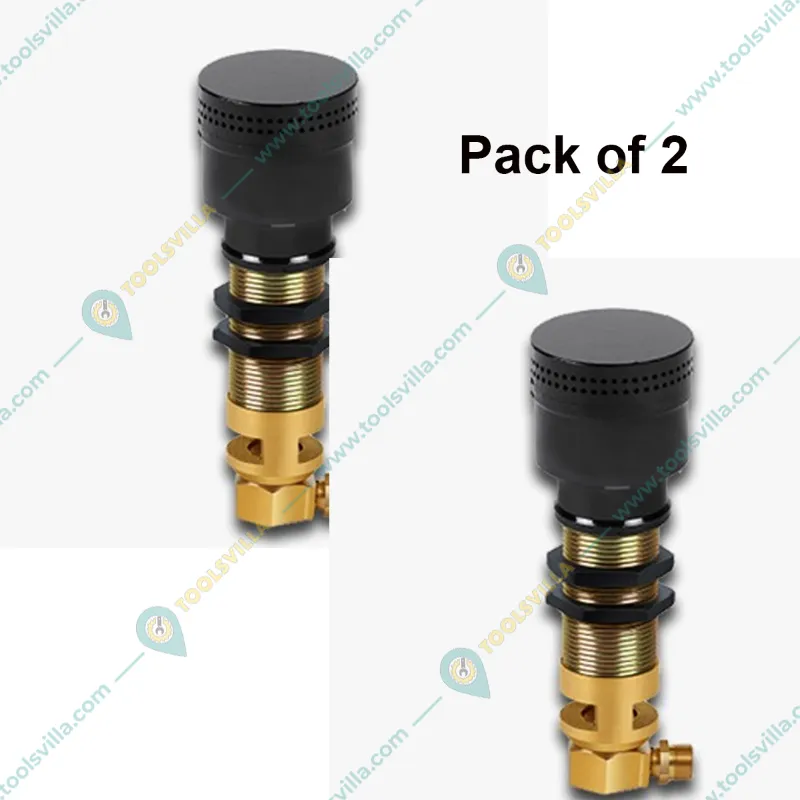

Moon (M 22) Side Drilled Gas Burner With Assembly Pack of 2
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Weight (Approx.) : 14 kg
  • Material : Mild Steel
  • Length : 204 mm (8 inches)
  • Head Diameter : 62 mm ( 2.45 Inches )
  • Optimum Working Pressure : 0.3 Kg/Cm2
  • Psig : 4.5
  • Consumption/Hour : 900 g/2.0 Ibs
  • Rated Heat Output : 10,100 Kcal/Hour
  • Btu/hr : 40,000
Description
These high pressure burners are recommended for heating flat surface vessels. The produce sunflower shaped flame. Working pressure should not be varied by more than 0.07 kgf/cm (+1psig). Use of these burners at pressure higher than 0.42 kgf/cm (6 psig), will result in wastage of gas. At a pressure of 20 psig (1.40kgf /cm:), the gas consumption per hour will be double. The nomenclature M-22 and M-35 is derived from the gas consumption, which is 2.2 lb/hr for M. 22 and 3.5 lb/hr for M.3.5, while M stands for Marguerite. The burner rated heat outputs are valid for altitudes upto 2000 ft above sea level. If altitude is more than 2000 ft, rated heat outputs should be reduced 4 4% per extra 1000 ft altitude.
