Brand: Crompton

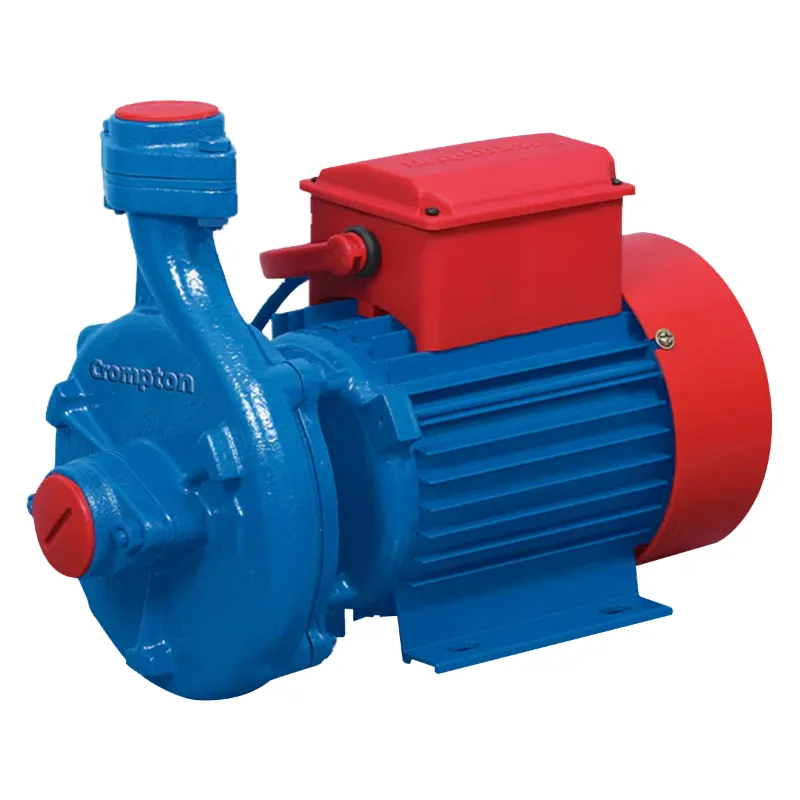

Crompton 0.5Hp Single Phase Centrifugal Monoblock Pump, 95LPM, 69ft Max. Head, 25X25mm (MAD052(1PH)Y-21) 1 Year Warranty
SKU: DC-CM-20220437
3 people have bought this recently
Delivery By: Dec 24 - Dec 26




MRP : ₹8000 ₹6349
21% OFF!

3 people have bought this recently
Delivery By: Dec 24 - Dec 26
Easy Return
& Refund
& Refund

Quality
Assurance
Assurance

Trusted
Delivery
Delivery

After Sales
Assistance
Assistance

Buyer
Protection
Protection
₹6349 (Including GST)
MRP : ₹8000
21% OFF!
Get Extra ₹95 OFF on Prepaid Orders
Short Description
Crompton 0.5 Hp Centrifugal Monoblock Pump (MAD052(1PH)Y-21)
95 LPM Max. Discharge, 69ft Max. Head
1 Year Warranty
Country of origin: India
Specifications
- Brand: Crompton
- Power : 0.5 hp
- Weight (Approx.) : 6 kg
- Flow Rate : 95 lpm
- Head : 21 meter
- Model No. : MAD052(1PH)Y-21
- Product Type : Centrifugal Monoblock Pump
- Brand : Crompton
- Wattage : 0.37 kW
- Electricity Connection : Single Phase
- Rated Voltage : 160-240 Volt
- Speed : 3000 RPM
- Head Range : 50 to 69 Feet (15 to 21 Meters)
- Discharge Range : 95 to 35 LPM
- Pipe Size(Suction X Delivery) : 25 x 25 mm
Description
A monoblock pump is a type of pump that is characterized by its compact and self-contained design, where the pump, motor, and drive shaft are combined into a single unit. Centrifugal monoblock pumps are commonly used in various applications such as water supply, irrigation. These pumps operate based on the principle of centrifugal force, where the rotation of the impeller creates a centrifugal force that pushes the liquid towards the outer edges of the pump casing, resulting in increased pressure and flow rate.
Features
:- Uni-casing construction
- Flat performance curves at high delivery rates, preventing motor overload even when used for lengthy periods of time
- Good Suction capacities at both low and high delivery rates
- Horizontal mounting with central discharge at the top is possible
- There are fewer parts and the construction is more space-efficient
Applications
:- Hotels, Buildings, Apartments, Hospitals ,Gardening
- Small farms, agriculture
- Public water supply schemes
- Lift Irrigation Schemes
- Drip and Sprinkler Irrigation Schemes
Warranty :
- 1 Year Warranty.
