335 W Polycrystalline Solar Panel
with IP 67 rated with 3 bypass diodes Junction Box
Easy to Install , long lasting Solar Panel
High Efficiency,Excellent Low Light Performance,
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Solar Universe India

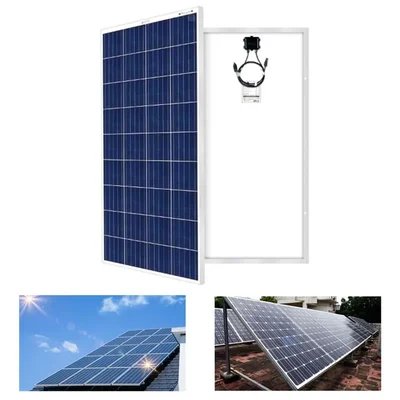

Solar Universe India Heavy Duty 72 Cells 335 W, 24 V Polycrystalline Solar Panel
SKU : BM-BB-20212491
MRP :
₹10050
-
1
+
9 people have bought this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Solar Universe India
- Weight (Approx.) : 21 kg
- Voltage : 24 V
- Number of Cell : 72
- Junction Box : IP 67 rated with 3 bypass diodes
- Cables & Connectors : 4 sq. m solar cable 1000mm, 2 Nos. black MC4 connectors
- Superstrate : 3.2 mm high transmission low iron tempered glass
- Cell Encapsulant : PID Free EVA (Ethylene Vinyl Acetate) ‐ FC/UFC
- Back sheet : Composite Film ‐ White (Black & Transparent optional)
- Frame : Silver Anodized Aluminum frame with twin-wall profile
- Mechanical Load Test : Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2)
- Material : Heavy Duty Silver Anodized Aluminum Frame & Tempered Glass.
Technical Data:
Electrical Characteristics at STC :
- Maximum Power Pmax : 335 Wp
- Maximum Voltage Vmpp : 38.52
- Maximum Current Impp : 8.70 A
- Open Circuit Voltage Voc : 46.08 V
- Short Circuit Current Isc : 9.57 A
- Module Efficiency : 17.20 %
Electrical Characteristics at NOCT:
- Maximum Power Pmax : 249.34 Wp
- Maximum Voltage Vmpp : 34.91 V
- Maximum Current Impp : 7.14 A
- Open Circuit Voltage Voc : 43.46 V
- Short Circuit Current Isc : 7.47
Temperature coefficient (Tc) and permissible operating conditions:
- Tc of Open Circuit Voltage (α) : ‐0.310%/°K
- Tc of Short Circuit Current (β) : 0.050%/°K
- Tc of Power (γ) : ‐0.410%/°K
- NOCT : 46 ± 2°C
- Maximum series fuse ratings : 30 A
- Temperature Range : ‐40°C to +85°C
- Maximum System Voltage : 1000 / 1500 V DC
Approvals and certifications from :
- IEC 61215 Ed 2, ROHS,IEC 61730, IEC 61701, CE,UL 1703, CEC, CE
Description
Made in India 335 W Polycrystalline solar panel is very easy to install and is not at all heavy. This panel can be dismantled and reinstalled at any other location very easily. Excellent Low Light Performance, Innovative High-Efficiency High-Grade Cell Technology. It is Built with a Heavy-duty silver anodized aluminium frame and AR coated tempered PV grade glass. Higher area efficiency. Perfect Solar Panels for Home, Business and Commercial Solar Rooftop Systems, Solar Water Pumps, Solar Projects, Filling Stations, EV Charging Stations. These efficient solar panels offer reduced electricity bills, maximized power generation, better performance in hot climates, low maintenance cost, high durability and diverse applications. This Product is manufactured by using quality assured material and advanced techniques, which make them up to the standard in this highly challenging field.
Features
:- Increased module power output.
- Maximum system voltage of 1500 V DC.
- Reduced BOS cost.
- High area efficiency.
- Easy installation & handling for various applications.
Applications
:It has various applications such as :
- On-grid Large scale utility projects
- On-grid rooftop Industrial & commercial system,
- Off-grid rooftop systems for residential buildings.
- Solar water pumping systems,
- Off-grid systems for Filling Stations.
- Electric Vehicles charging station,
- Street lighting applications.
