Brand: Generic ( Made in India )

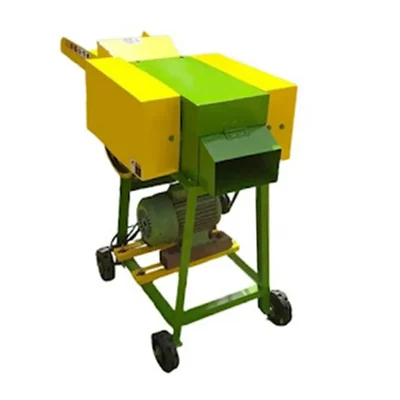

Chaff Cutter/Grass Cutter Machine, 300 to 800 kg per hr with 2hp Motor
SKU: DK-AI-1234
₹21918 (Including GST)
MRP : ₹24899
Get extra ₹329 Discount (On Checkout)
Delivery By: May 5 - May 7
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Chaff Cutter/Grass Cutter Machine with 2HP Motor
600 to 800 Kg per hr Green Fodder Cutting Capacity
300 to 400 Kg per hr Dry Fodder Cutting Capacity
Country of origin: India
Description
A chaff cutter is a mechanical device for cutting straw or hay into small pieces before being mixed together with other forage and fed to horses and cattle. This aids the animal's digestion and prevents animals from rejecting any part of their food. They are known as Chara Cutter & Kutty Cutting Machine in various regional languages. It is equipped with 2HP motor and has a cutting capacity between 300-800 kilos per hour (depending on the material). This is a must have machine for those who own dairy farm or individuals who are associated with cattle and livestock.
Features
:- Ease of Operation: The design of chaff cutter prioritizes user-friendliness, with intuitive controls and guidance, making them accessible even to those with limited technical expertise.
- High Cutting Capacity: The chaff cutter has a cutting capacity of 300-800 kg/hr making it suitable for carrying out high volume fodder cutting operations with ease.
- Efficient Cutting: Chaff cutter chops up straw, hay, and green fodder into small pieces, making it more digestible for animals.
Specification
:- Brand: Generic ( Made in India )
- Material : Mild Steel
- Weight (Approx.) : 65 kg
- Motor Power : 2 HP
- Voltage : 230 V
- Phase : Single
- Motor Pulley : 3" (7.62 cm) B Section Single Groove
- No. of Blades : 3 Blades (1 Fixed, 2 Movable with both sides sharpened)
- Blade Material : Special Steel-EN31 (Harden)
- Gear Material : Special Steel-EN8 (toughening for Better Life)
- Machine Feed : Kabada Straw, Hatti Grass Straw, Sugar Cane, Corn Stalk
- Cutting Size : 18 to 23 mm (Approx.)
- Cutting Capacity Green Fodder : 600 - 800 kg per hour (Approx.)
- Cutting Capacity Dry Fodder : 300 - 400 kg per hour (Approx.)
- Dimensions (L x D x H) : 1100 x 420 x 820 mm
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: As this machine doesn't include the motor with it. The user needs to connect a motor in order to start the fodder cutting operation. Ensure that the motor is connected to an appropriate power source.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
