Brand: Generic ( Made in India )

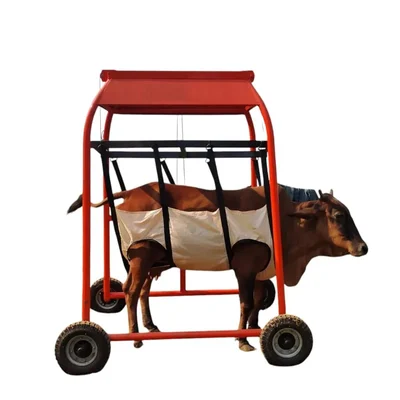

Portable Manual Animal Lifting Machine With 1500 Kg Load Capacity For Veterinary Use
SKU: TI-PM-62694
Delivery By: Feb 25 - Feb 27
MRP : ₹99999 ₹79999
20% OFF!
Delivery By: Feb 25 - Feb 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹79999 (Including GST)
MRP : ₹99999
20% OFF!
Get Extra ₹1,200 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Portable Manual Animal Lifting Machine
With 1500 Kg Load Bearing Capacity
Country of origin: India
Specifications
- Brand: Generic ( Made in India )
- Weight (Approx.) : 200 kg
- Product Material : Mild Steel
- Product Dimension : 6 x 5 x 7.5 Feet ( 182.88 x 152.4 x 228.6 cm)
- Product Colour : Orange Oil Paint
- Capacity : 1500 Kg
- Material : 65 x 65 x 6 mm with Angle 90 degree bending
- Dimension (L X W) : 1000 mm X 800 mm
- Top Structure : Equipped with 8 nose ring arrangement
- Side Support : 60 mm Outer Diameter (OD), Class C Quality
Lifting System :
- Mechanism : Gear Type System with Self Locking Functionality
- Clutch Wire : 8 mm Diameter
- Pulley: Double bearing pulley system for smooth lifting
- Operation : Design for easy use by a single person
Lifting Belt :
- Material : Wear Resistant Canvas
- Fitting : Fitted with M Steel Ring for durability and strength
Tyres :
- Type :4 Pneumatic auto tyres ( Size : 4.00 - 8)
- Bearings : Double Bearings and seals on all wheels
- Mobility :
- 2 Tyres fixed
- 2 tyres with left right swivel movement for steering
Lifting Support Structure :
- Main Tubes : 60 x 40 mm Mild Steel
- Inner Reinforcement : 60 x 40 mm internal support
- Hooks : 8 Hooks made from 12 mm diameter Mild Steel round bar
Up Down System :
- Height Adjustment : Manual lifting height adjustable up to 84 inches (7 feet)
- System Type: Manual Travis-style up-down operation
Sling System :
- Material: Wear-resistant canvas fabric.
- Dimensions: 5 feet × 5 feet.
- Capacity: Up to 1500 kg.
- Hook Points: 8 integrated hook.
- Function: Enables lifting of animals from lying or resting position.
- Flexibility: Designed to accommodate animals of various sizes.
Description
A Portable Manual Animal Lifting Machine with a 1500 kg capacity is a heavy-duty, mechanical lifting solution designed primarily for veterinary, agricultural, and rescue operations. It is engineered to safely lift and support large livestock such as cattle, horses, or exotic animals that are unable to stand due to injury, illness, or post-operative recovery. Unlike motorized lifts, these manual versions rely on high-ratio gearing or hydraulic hand pumps, ensuring precise control and portability in remote areas where electricity is unavailable.
Features
:- High Load Rating: Specifically engineered to support up to 1500 kg (approx. 3300 lbs), making it suitable for even the largest bulls or draft horses.
- Reinforced Steel Frame: Constructed from high-tensile, powder-coated steel to prevent corrosion and ensure structural integrity under extreme pressure.
- Manual Precision: Utilizes a heavy-duty hand winch or a manual hydraulic jack system, allowing the operator to lift the animal at a slow, stress-free pace.
- Wide Belly Slings: Equipped with broad, reinforced canvas or PVC slings that distribute weight evenly to prevent pressure sores or internal organ distress.
- Adjustable Height & Width: The frame can often be telescoped to fit different animal sizes and to clear various gate or stall widths.
Accessories
:Accessories: Includes one set of sling belts with each Travis unit.
Applications
:- Downer Cow Management: Essential for lifting "downer" cows to restore blood circulation and prevent permanent muscle damage.
- Veterinary Surgery: Used to position large animals for examinations or to support them during the recovery phase after anesthesia.
- Emergency Rescue: Vital for moving animals that have fallen into ditches, mud, or confined spaces on farms.
- Breeding Facilities: Assists in supporting heavier males or injured females during the breeding process.
- Livestock Transportation: Aids in loading non-ambulatory animals onto trailers or specialized transport vehicles.
