Brand : Generic (Imported)

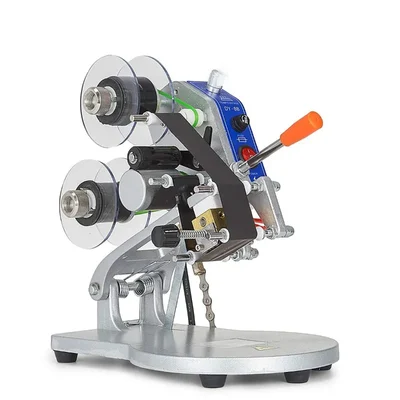

2.5 mm Letter Height, 3 Line Ribbon Coding Machine for Printing on LDPE, LLDPE, HDPE, PP, PET, CPP BOPP, Laminated Pouches
SKU : AB-IM-21937
MRP :
₹5229
-
1
+
119 people have bought this recently
Get Extra ₹78 OFF on Prepaid Orders
Delivery By: Jun 18 - Jun 20
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

This manual ribbon coding machine is designed for printing up to three lines of clear, durable codes (like batch numbers, dates, etc.) with a 2.5 mm letter height onto a wide range of plastic pouches, including LDPE, LLDPE, HDPE, PP, PET, CPP, BOPP, and laminated materials. It operates on 220V/60Hz power and utilizes a heated brass character system with colored ribbons.

Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Weight (Approx.) : 2.5 kg
  • Letter Height: 2.5 mm
  • Number of Print Lines: 3 Lines
  • Characters per Line: 12 (maximum)
  • Voltage: 220V
  • Frequency: 60 Hz
  • Operation: Manual
  • Printing Speed: Manual (depends on operator)
  • Print Area: 3 Lines (Each line 12 characters of 2.5 mm height)
  • Color Ribbon Width: 25 mm, 30 mm, 35 mm
  • Prints Medium: Brass Characters
  • Dimension (L x W x H): 270 mm x 160 mm x 220 mm (27x16x22 cm)
Description

This is a compact and manually operated ribbon coding machine ideal for applying variable data onto flexible packaging materials. It utilizes a thermal transfer method where a heated brass character die presses a colored ribbon onto the plastic film, leaving behind a clear and smudge-proof imprint. The machine is capable of printing up to three lines of text, with each line accommodating up to 12 characters at a height of 2.5 mm. Its versatility allows it to print on a wide array of commonly used plastic pouch materials, making it suitable for various industries requiring on-package coding. The manual operation provides control over the printing process, making it suitable for lower volume production or applications where flexibility is key.

Features

 :
  • Multi-Line Printing: Capable of printing up to 3 lines of information simultaneously.
  • Adjustable Print Area: Each of the 3 lines can accommodate up to 12 characters.
  • Clear and Durable Prints: Utilizes heated brass characters and colored ribbons for sharp, smudge-resistant coding.
  • Wide Material Compatibility: Suitable for printing on LDPE, LLDPE, HDPE, PP, PET, CPP, BOPP, and laminated pouches.
  • Compact Design: Small footprint (270 x 160 x 220 mm) makes it easy to integrate into existing workspaces.
  • Manual Operation: Simple to operate and requires no compressed air or complex setup.
  • Variable Ribbon Width Compatibility: Accepts color ribbons with widths of 25 mm, 30 mm, and 35 mm. 1

Applications

 :
  • Production Sector : Printing production dates, batch numbers, weights, and other parameters on a variety of materials, such as plastic films, aluminum products, leather goods, etc., is another use for this coding machine in the manufacturing sector.
  • Retail Sector : Retailers utilize electric ribbon coding machines to print labels that provide pricing and promotional information directly onto products or their packaging.
  • Food Industry : Date codes, lot numbers, expiration dates, and other pertinent information can be imprinted on food packaging with this machine. It enables legible writing on a variety of packaging materials, including paper and plastic bags.
  • Pharmaceutical Industry : Batch numbers, expiration dates, and other critical information on medicine packaging are coded using the coding machine in the pharmaceutical industry. Traceability and adherence to legal standards are guaranteed.
Maintenance:
  • Regular Cleaning: After each use, or at regular intervals, clean the brass characters with a soft brush to remove any ribbon residue or debris. A mild solvent may be used if necessary, ensuring it is compatible with the brass.
  • Print Head Cleaning: Carefully clean the heated print head to remove any ribbon buildup. Follow the manufacturer's recommendations for cleaning the print head, as improper cleaning can damage it.
  • Inspection: Periodically inspect the machine for any loose screws or worn parts. Tighten any loose connections.
  • Ribbon Storage: Store unused color ribbons in a cool, dry place away from direct sunlight and dust.
  • Professional Servicing: For more complex maintenance or repairs, it is recommended to consult a qualified technician.

    Precautionary Guidance:

  • Electrical Safety: Ensure the machine is properly grounded and connected to the correct voltage (220V) and frequency (60Hz). Avoid operating in wet or damp environments.
  • Hot Surfaces: Be aware that the print head and brass characters become hot during operation. Avoid touching them directly to prevent burns. Allow them to cool down before maintenance or character changes.
  • Proper Ventilation: Ensure adequate ventilation in the work area, as the heating of the ribbon may release small amounts of fumes.
  • Material Compatibility: Always test the machine on a sample of the pouch material to determine the optimal temperature and pressure settings for clear printing without damaging the film.
  • Secure Character Loading: Ensure the brass characters are securely loaded to prevent them from falling out during operation.
  • Avoid Overloading: Do not apply excessive force during the manual printing process, as this could damage the machine or result in unclear prints.
  • Power Off Before Maintenance: Always turn off and unplug the machine before performing any maintenance or cleaning.
  • Keep Away from Children: This machine is not a toy and should be kept out of reach of children.
  • Use Recommended Ribbons: Use only color ribbons of the specified widths (25mm, 30mm, 35mm) that are compatible with the machine. Using incorrect ribbons may lead to poor print quality or damage to the machine.

    • Usage

     :
    • Setup: Place the machine on a stable and level surface. Connect it to a 220V/60Hz power outlet.
    • Character Loading: Carefully load the required brass characters (letters, numbers, symbols) into the character holder, arranging them to form the desired code for each of the three lines. Ensure they are securely in place.
    • Ribbon Loading: Thread the colored ribbon through the machine according to the manufacturer's instructions, ensuring it passes correctly over the heated print head and in contact with the brass characters. Select a ribbon width (25mm, 30mm, or 35mm) appropriate for the print area.
    • Temperature Adjustment: If the machine has a temperature control, adjust it according to the type and thickness of the plastic film being printed on. Start with a lower temperature and gradually increase if the print is not clear.
    • Pouch Positioning: Position the plastic pouch in the designated printing area, ensuring it is aligned correctly for the desired print location.
    • Manual Operation: Manually press the operating lever or button to bring the heated brass characters and ribbon into contact with the pouch. Apply firm and even pressure for a brief moment to transfer the code onto the film. The printing speed and pressure are controlled by the operator.
    • Repeat: Repeat the process for each pouch that needs to be coded.
    • Power Off: After use, turn off the machine and unplug it from the power source. Allow the print head to cool down before handling.

    Maintenance :
    • Pre-Use Checks : Inspect for debris on the printing surfaces and ensure the power supply is stable and undamaged.
    • Cleaning Procedures : After each shift, clean the work surface and wipe down the machine with a soft, dry cloth.
    • Regular Maintenance : Clean the ribbon path and print head regularly to prevent clogs and ensure clear prints.
