Brand: YBICO

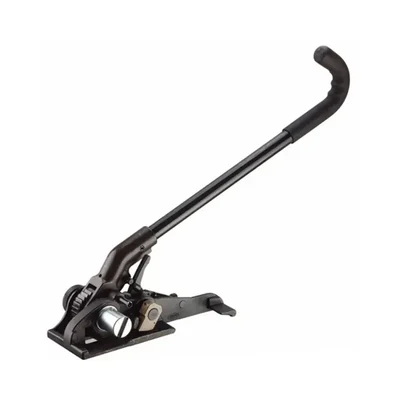

YBICO S300 Manual Tensioner Machine, Strap Width 19-32 mm
SKU: SI-YS-24539
Delivery By: Jun 24 - Jun 26
MRP : ₹53000
Delivery By: Jun 24 - Jun 26 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹53000 (Including GST)
Get Extra ₹795 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
YBICO S300 Manual Tensioner Machine, Strap Width 19-32 mm
1.27 mm max Strapping Thickness
Suitable for Steel Strap
Country of origin: Taiwan, Province of China
Specifications
- Brand: YBICO
- Weight (Approx.) : 5.5 kg
- Model No. : S300
- Body Material : Steel
- Operation : Manual
- Strap Width : 19 mm to 32 mm
- Strap Thickness : 1.27 mm max
- Strapping Type : Steel Strap
- Weight : 5.5 kg (Approx.)
Description
This YBICO S300 Tensioner is a heavy-duty manual tool specifically designed for applying tension to steel strapping. This tool is particularly effective for straps that have a width ranging from 19 mm to 32 mm. The primary function of the S300 tensioner is to securely tighten the steel strap around packages or products, ensuring that they are held firmly in place during storage or transportation.
Features

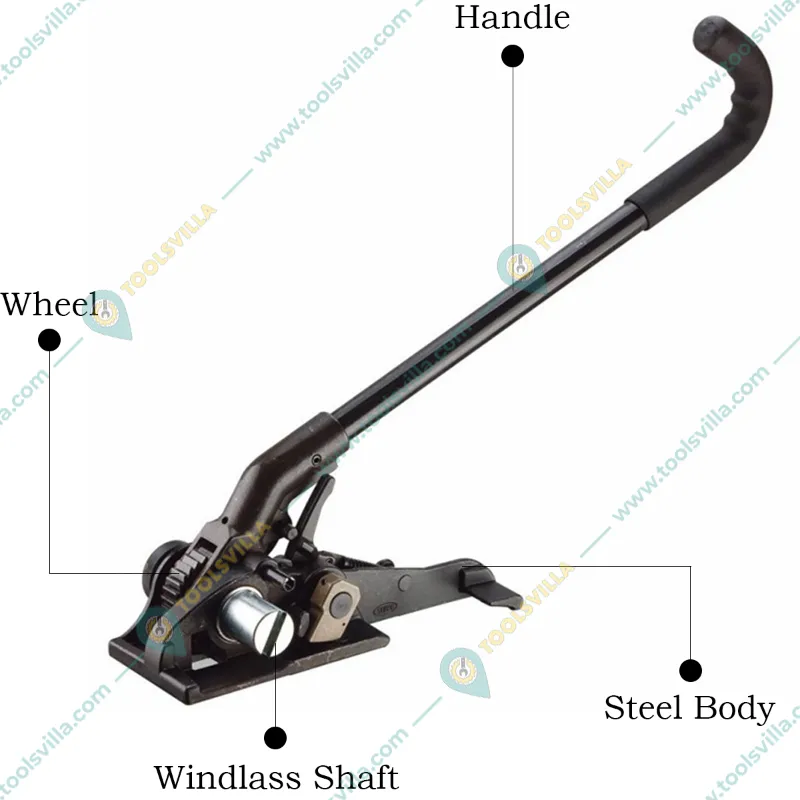

:- Model and Design : The YBICO S300 is categorized as a heavy-duty windlass tensioner, which means it is built to withstand rigorous industrial use.
- Strap Width Compatibility : This tensioner is compatible with steel straps ranging from 19 mm to 32 mm in width. This versatility allows it to be used across various packaging applications.
- Operation Mechanism : The tool operates by winding one end of the steel strapping around a slotted windlass shaft, which facilitates secure tightening of the strap around packages or pallets.
- Automation Grade : The automation grade of this tool is manual, meaning that it does not require any power source other than human effort, making it suitable for locations without electrical access.
Usage
:Preparation :
- Ensure you have the YBICO S300 tensioner, steel strap of width between 19 mm and 32 mm, and a suitable sealing tool.
Feeding the Strap :
- Take one end of the steel strap and feed it through the slot on the tensioner.
- Wrap the strap around the slotted windlass shaft.
Tensioning :
- Pull the free end of the strap to remove any slack.
- Turn the handle of the tensioner clockwise to apply tension to the strap until it is tight enough for your application.
Sealing :
- Once you have achieved the desired tension, use a sealing tool to secure the ends of the strap together.
- Follow the instructions specific to your sealing tool for proper sealing techniques.
Final Check :
- Inspect the tensioned strap to ensure it is secure and properly sealed before proceeding with your packaging process.
Maintenance :
- Regular Inspection : Check the tensioner for any signs of wear or damage, particularly on the windlass shaft and handle.
- Cleaning : After use, clean the tensioner to remove any debris, dust, or residue from the steel straps. Use a soft cloth and avoid harsh chemicals that could damage the tool.
Applications
:- Industrial Packaging : Ideal for securing heavy-duty packages and pallets in various industries.
- Construction : Useful for bundling construction materials like steel rods, pipes, and other heavy items.
- Logistics and Shipping : Ensures that goods are securely strapped during transportation, reducing the risk of damage.
- Manufacturing : Suitable for strapping products and materials in manufacturing plants for storage and shipment.
