Brand: Reliant Lab

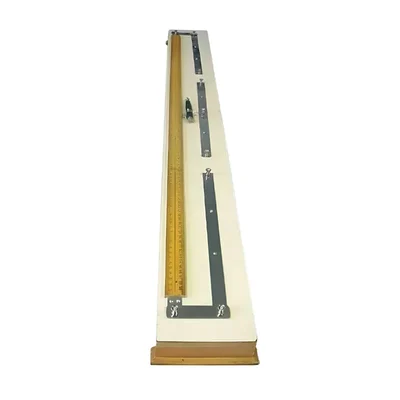

Reliant Lab Meter Bridge (Wheatstone Bridge) with Pencil Jockey (Sunmica Base)
SKU: TB-RE-68325
Estimated Delivery By: Apr 16 - Apr 18
MRP : ₹3809 ₹2299
40% OFF!
Estimated Delivery By: Apr 16 - Apr 18 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹2299 (Including GST)
MRP : ₹3809
40% OFF!
Get Extra ₹34 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Reliant Lab Meter Bridge (Wheatstone Bridge)
With Pencil Jockey Sunmica Base
Country of origin: India
Specifications
- Brand: Reliant Lab
- Jockey : Pencil Jockey
- Base : Sunmica Base
Description
The Reliant Lab Meter Bridge, also known as a Slide Wire Wheatstone Bridge, is a fundamental electrical measuring instrument used to determine unknown resistance with high precision. It operates on the principle of the Wheatstone Bridge, where a balance point is found along a one-meter uniform resistance wire. The apparatus is mounted on a heavy, seasoned wooden board with a premium Sunmica base, providing excellent electrical insulation and protection against moisture. Thick, polished brass strips are used to create gaps for resistance boxes and unknown resistors, ensuring minimal contact resistance. Supplied with a smooth-sliding pencil jockey, this meter bridge is an essential tool for any physics laboratory exploring the laws of electricity.
Features
:- Insulated Sunmica Base: The wooden board is laminated with high-grade Sunmica to prevent electrical leakage and provide a durable, warp-resistant surface.
- Heavy Brass Strips: Features thick, non-corrosive brass plates with three gaps and high-quality binding terminals to ensure negligible resistance in the circuit.
- Uniform Resistance Wire: Strung with a 1-meter long Manganin or Constantan wire, characterized by a low temperature coefficient to maintain accuracy during use.
- Precision Pencil Jockey: Comes with an ergonomic, insulated pencil style jockey that allows for sharp, accurate contact without damaging the wire.
Applications
:- Unknown Resistance Measurement
- Verification of Series Laws
- Verification of Parallel Laws
- Resistivity Calculation
- Temperature Coefficient Studies
- Null Point Demonstration
