Brand : CRI

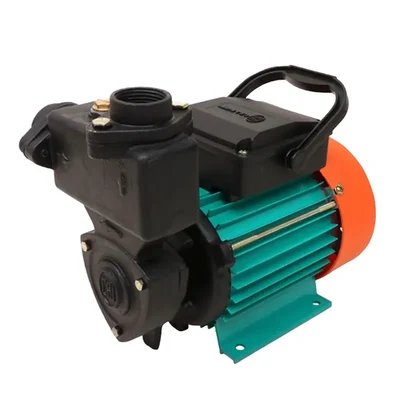

CRI 1 Hp Single Phase Copper Winding Mini Self Priming Monoblock Pump, 35m Head, 25X25mm (ELSA 105) - 1 Year Warranty
SKU : TI-C1-46611
MRP : ₹5900
₹4600
22% OFF!
-
1
+
Get Extra ₹69 OFF on Prepaid Orders
Delivery By: Nov 4 - Nov 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1 Hp 1Ph Self-Primig Monoblock Pump (ELSA 105)
35m Max. Head, 2990 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 1 hp
  • Weight (Approx.) : 9.20 kg
  • Flow Rate : 49 lpm
  • Head : 35 meter
  • Model No. : ELSA 105
  • Product Type : Self- Priming Monoblock Pump
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
  • Pipe Size (Suction X Delivery) : 25X25 mm
  • Suction Capacity : 8 Meter
  • Head Range : 6 to 35 Meter (20 to 115 Feet)
  • Discharge Range : 2990 to 685 LPH (49 LPM to 11 LPM)
  • Winding Material : Copper Coated Winding
  • Speed : 2880 RPM

Material Of Construction :
  • Pump Casing : Cast Iron
  • Impeller : High Tensile Brass
  • Rotor : Aluminium Die Cast
  • Motor Shaft : SS 410
  • Cooling Fan : Poly Propylene - Co Polymer
  • Mechanical Seal : Carbon & Ceramic
Description
C.R.I. Self-priming monoblock pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noise free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. Non-self priming pumps with end suction and radial delivery.

Features

 :
  • Built-in with imported Thermal Overload Protector.
  • Specially designed for wide voltage operation.
  • Powder coated multi-color stator body.
  • Sturdy and compact
  • Double sealed ball bearing, so no need of external lubrication.

Applications

 :
  • Domestic
  • Small Garden
  • Pressure Boosting
  • Civil Application
  • RO Applications
  • House Watering System

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only.
