Brand: CROSSBEE

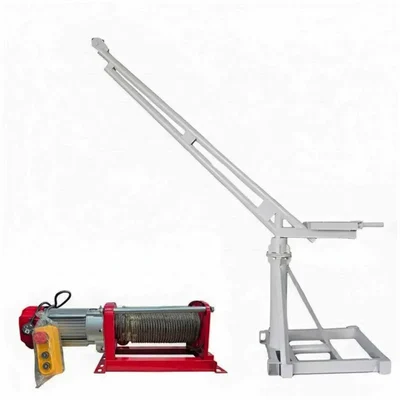

Crossbee 500 kg Capacity 360° Mini Crane With Electric Winch, 3 HP Copper Winding Motor, 50 Meter Wire Rope
SKU: TI-C5-18014
MRP : ₹38000
Offer Price : ₹26990 (Including GST)
Get extra ₹405 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crossbee 500 kg Capacity 360° Mini Crane With Electric Winch
3 HP Copper Winding Motor
50 Meter Wire Rope
Country of origin: China
Description
The 360° Mini Crane Electric Hoist Structure is a device that has been made to function well with little upkeep. Users of the 360° Mini Crane Electric Hoist Structure receive magnetic lifting strength, including the ability for one side to expand and retract utilizing straightforward, user-friendly mechanics.
This machine is small and compact in size.
Easy to operate and can be used in smaller areas.
Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
Features
:- This machine is small and compact in size.
- Easy to operate and can be used in smaller areas.
- Strong and heavy motor.
- Heavy and Thicker wire rope.
Specification
:- Product Type: Floor Cranes
- Brand: CROSSBEE
- Product Type : Mini Crane With Electric Winch Machine
- Brand : Crossbee
- Rotation Angle : 360°
- Phase: Single Phase
- Motor : 3 HP
- Winding : 100% Copper Winding
- Load Capacity : 500 kg
- Input Power : 2000 W
- Rated Voltage : 220V
- Wire Rope Length : 50 meters
- Wire Rope Diameter : 8 mm
- Maximum Lifting Height : 50 meters
- Continuous Working Capacity : 2 hrs. (Approx.)
- Speed : 15-20 meter per mins
- Weight : 80 Kg (Approx.)
Specifications :
- Product Type : Electric Winch Machine
- Brand : Crossbee
- Winding : 100% Copper
- Clutch System : No
- Motor Power : 3 HP
- Phase : Single
- Voltage : 220 V
- Motor RPM : 2800
- Input Power : 1800 Watt
- Wire Rope Length : 50 meter
- Wire rope Thickness : 8 mm
- Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
- Lifting Height Single Hook : 25 meters
- Lifting Height Double Hook : 50 meters
- Lifting speed : 7-14 meter per min
- Continuous Working Capacity : 2 hrs. (Approx.)
- Weight : 40 Kg (Approx.)
