Brand : HT

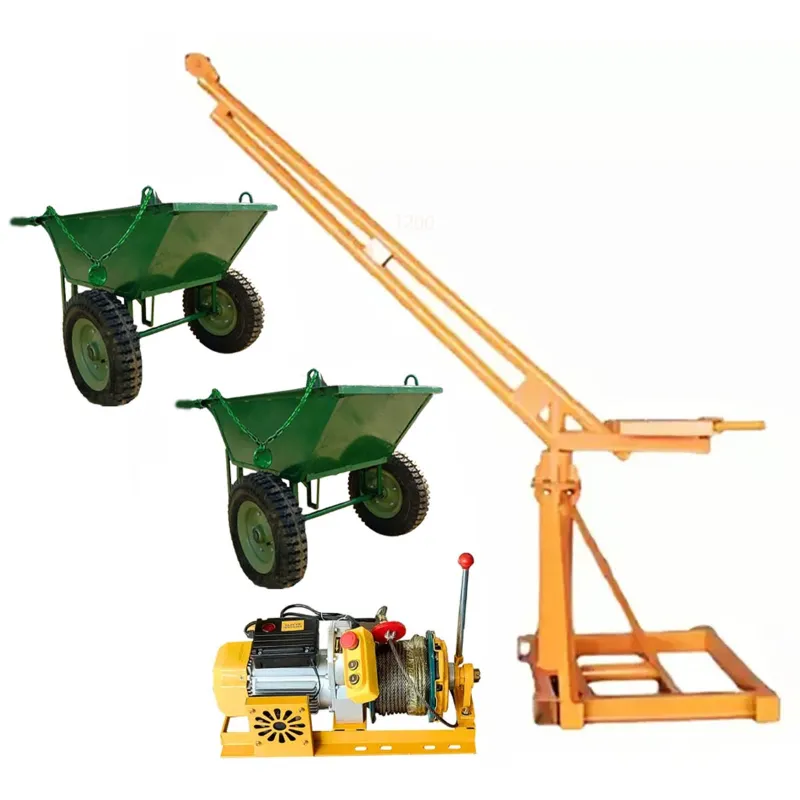

HT 500 kg Capacity 360° Mini Crane With Electric Clutch Winch, 5 HP Motor,100 Meter 8 mm Wire Rope & 2 Pcs Double Wheel Trolley
SKU : TI-H5-26704
MRP : ₹60000
₹50000
17% OFF!
-
1
+
Get Extra ₹750 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HT 500 kg Capacity 360° Mini Crane With Electric Clutch Winch & 2 Wheel Double Wheel Trolley
5 HP 100% Copper Winding Motor
100 Meter 8 mm Wire Rope
Single Phase
Country of origin: China
Description
A mini crane is a compact lifting device that resembles a standard construction crane but is designed for use in confined spaces and on smaller job sites.
An electric clutch winch is a mechanical device designed for lifting and pulling heavy loads, utilizing an electric motor and a clutch mechanism to enhance control during operatio
A wheelbarrow is a small, hand-propelled vehicle designed for transporting loads.

Features

 :
  • This machine is small and compact in size.
  • Easy to operate and can be used in smaller areas.
  • Strong and heavy motor.
  • Heavy and Thicker wire rope.

Specification

 :
  • Product Type: Floor Cranes
  • Brand: HT
  • Power : 5 hp
  • Weight (Approx.) : 149.38 kg
  • Load Capacity : 500 kg
  • Product Type: Floor Cranes
  • Brand: HT
  • Motor Power : 5 hp
  • Load Capacity : 500 kg
  • Rotation Angle : 360°
  • Phase: Single Phase
  • Winding : 100% Copper Winding
  • Load Capacity : 500 kg
  • Input Power : 2200 W
  • Rated Voltage : 220V
  • Clutch System : Yes
  • Wire Rope Length : 100 meters
  • Wire Rope Diameter : 8 mm
  • Maximum Lifting Height : 100 meters
  • Speed : 15-20 meter per mins
  • Continuous Working Capacity : 2 hrs. (Approx.)

Specifications Of Wheel Barrow :
  • Product Type : Double Wheel Barrow With Chain
  • Brand : Made in India
  • Load Capacity : 160 kg
  • Material : Steel
  • Number Of Wheel : 2
  • Wheel : 10 x 4 Inch pneumatic Rubber Wheel
  • Product Finishing : Powder Coated
  • Chain Length : 1 Meter

Applications

 :
  • Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.

Package Details :
  • 1 x Crane
  • 1 x Electric Clutch Winch
  • 2 x Double Wheel Trolley
  • 1 x Eye Hook
  • 1 x Wire Rope
  • 1 x Remote
  • 1 x Voltmeter
This product will be shipped in 6 packages.View All
