Brand : CROSSBEE

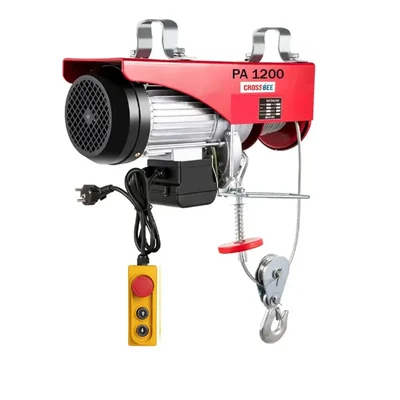

Crossbee PA 1200 kg Electric Hoist with 3 HP Copper Winding Motor, 8 mm diameter & 20 meter long Wire Rope
SKU : TI-1C-11617
MRP : ₹18000
₹12490
31% OFF!
-
1
+
13 people have bought this recently
Get Extra ₹187 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Mini Electric Hoist 600/1200 kg with Double Hook is capable of lifting 1200 kg of weight with the aid of double hook.
PA 1200 Kg Load Capacity 2206 W Electric Hoist
Mini Electric Hoist with 20 m Wire Rope,8mm Diameter
100% Copper Motor ( 3 HP )
Remote Controlled Electric hoist
speed is 18 meter/minute
Country of origin: China
Specification
Description
Crossbee PA 1200 kg Electric Hoist with 3 HP Copper Winding Motor, 8 mm diameter & 20 meter long Wire Rope

Description :
  • Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead. Electric chain hoists and electric wire rope hoists are the two primary varieties of electric hoists.
  • Mini Electric Hoist 600/1200 kg with Double Hook is capable of lifting 1200 kg of weight with the aid of double hook. It is designed to operate electrically, with an emergency push button in red to prevent any casualty.

Features :
  • With emergency stop switch
  • Reinforced braking switch with position limit
  • Protection class up to IP54
  • With thermal prevention device
  • Compact and small size design
  • Long life span and high efficiency
  • Applicable for most industry, business, handicraft industry and service industry
  • Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :
  • Product Type : Electric Hoist
  • Model : PA-1200
  • Brand : Crossbee
  • Motor Power : 3 HP
  • Input Power : 2206 W
  • Phase : Single Phase
  • Working : Remote Controlled
  • Lifting Height : Single Hook-20m , Double Hook-10m
  • Lifting Speed : Single & Double Hook : 18 m/min
  • Rated Voltage : 220-240 V
  • Frequency : 50Hz
  • Lifting Weight : Single Hook-600Kg, Double Hook-1200Kg
  • Wire Rope Diameter : 8 mm
  • Wire Rope Length : 20 meter
  • Hoisting Speed : 18 meter / minute
  • Continuous Working Capacity : 2 hours (Approx.)

Application :
  • Warehouses, automotive servicing , machine shops, manufacturing facilities, factories ,building sites and railroad construction.

In The Box :
  • 1 Electric Hoist
  • 1 Electric Hoist Remote
  • 1 Eye Hook
  • 1 Pulley Hook.
  • 20 m Wire Rope
  • Mounting Case
  • Nutbolts and Clamps

Note :
  • All these accessories are assembled with the machine
  • The video shown are for illustration purposes only and may not be an exact representation of the product.
