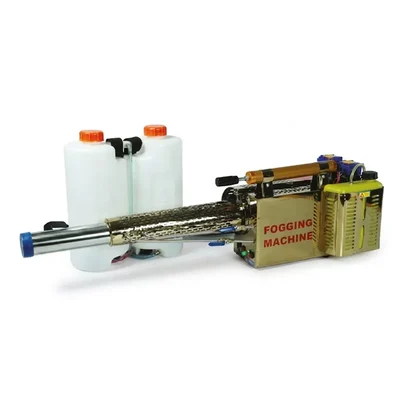

Victor 12.8V Electric Operated Thermal Fogging Machine (CA-FO120D) with 16L Tank Capacity & Titanium Alloy Body

• Engine Cubic Capacity : 56 cc
• Solution Tank Capacity : 16 Liters (8 L × 2)
• Fuel Tank Capacity : 2 Liters
• Flow Rate : 1.5 L/min
• Fuel Consumption : 3 L/h
• Droplet Size Spectrum : 30 µm
• Ignition System : Electric (12.8 V Power Supply)
• Starting Method Push Button : Electric / Manual Backup
• Frame Material : Titanium Alloy
• Exploding Pipe Material : Grade 316 Stainless Steel
• Exploding Pipe Type : 70-34

Features

• Titanium Alloy Frame: Lightweight, high-strength chassis engineered to resist impact and field corrosion.
• Grade 316 Stainless Steel Pipe: Features a Type 70-34 exploding pipe built for superior heat resistance and chemical durability.
• 16 L Dual Chemical Tank: 8 L × 2 dual tank design optimizes chemical volume distribution while reducing refill frequency.
• 12.8 V Electric Ignition: Instant push-button starting with integrated battery power plus a manual start option.
• 30 µm Ultra-Fine Droplet Spectrum: Creates a micro-fog mist that stays suspended for maximum pest eradication efficiency.
• Efficient Fuel & Flow Management: Delivers 1.5 L/min fog output with a controlled fuel consumption rate of 3 L/h.

Applications

• Agricultural Protection: Rapidly misting orchards, greenhouses, and broad-acre crops to eliminate targeted insects and plant diseases.
• Public Health Vector Control: Eradicating mosquitoes, flies, and disease-carrying pests in residential zones, parks, and urban centers.
• Livestock & Poultry Sanitation: Decontaminating large animal barns, poultry coops, and pens to reduce airborne pathogen loads.
• Commercial Warehousing: Treating expansive indoor storage spaces, logistics centers, and factories for pest management.
• Municipal Waste & Drainage Sanitation: Misting refuse facilities, sewage treatment sites, and stagnant water zones for vector control.

Usage

• Preparation: Inspect all fuel lines and chemical seals. Fill the 2 L fuel tank with standard gasoline and fill the 16 L (8 L × 2) chemical tank with the diluted solution.
• Ignition: Turn on the 12.8 V main switch and press the electric push-button start (or use manual start if required) to ignite the 56 cc engine.
• Warm-Up & Flow Start: Allow the engine to stabilize for a few seconds, then open the chemical output valve to initiate fogging at the standard 1.5 L/min rate.
• Directional Spraying: Move steadily with the wind direction, aiming the wand to distribute the 30 µm micro-mist over target vegetation or structures.
• Shutdown Routine: Shut off the chemical valve first to clear leftover chemical from the 316 SS exploding pipe, turn off the engine, depressurize the system, and clean tanks after use.
