GT Shakti GT-P22-2E, Mini Portable HTP Pump Set
with 97 CC Petrol Engine ( 4 Stroke)
Useful for Cars, bikes washing, Agriculture spray in farmland etc.
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : GT Shakti
GT Shakti GT-P22-2E, Mini Portable Petrol HTP Pump Set With 4 Stroke 97 CC Engine
SKU : TI-GS-25423
MRP : ₹15900
₹12400
22% OFF!
-
1
+
1429 people have viewed this recently
Delivery By: Jun 20 - Jun 22
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: China
Specification
- Brand: GT Shakti
- Weight (Approx.) : 22 kg
- HTP Pump Model No. : GT-P22-2E
- Speed : 1800 RPM
- Maximum Flow Rate : 13.5 LPM
- Working Pressure : 2-3.5 MPA
- Plunger Diameter : 25 mm
- Matched power : 152F
- Engine Rated Power : 2.5 HP
- Engine Displacement : 97 cc
- Engine Type : 4 - Stroke, Air cooled
- Fuel Used : Petrol
- Fuel Tank : 1.3 Liter (Approx.)
- Fuel Consumption : 700-900 ml/hour (Approx.)
Note : Colour of the Product may Vary
Description
Introducing the HTP Pump with Engine from Toolsvilla, a powerful and reliable solution for all your industrial pumping needs. Engineered with precision, this robust pump boasts a high-performance engine that delivers unparalleled efficiency and durability. The GT Shakti GT-P22-2E is a mini portable petrol high-pressure pump set designed for efficient spraying applications.
Features
:- Engine: Powered by a 4-stroke 97 CC engine, delivering reliable performance.
- Speed: Operates at a speed of 1800 RPM, ensuring effective fluid movement.
- Flow Rate: Offers a maximum flow rate of 13.5 liters per minute, suitable for quick spraying tasks.
- Working Pressure: Functions within a working pressure range of 2 to 3.5 MPa, adaptable for various applications.
- Portability: Compact and lightweight design, making it easy to transport for agricultural and gardening use.
- Durability: Built with sturdy materials to withstand tough working conditions.

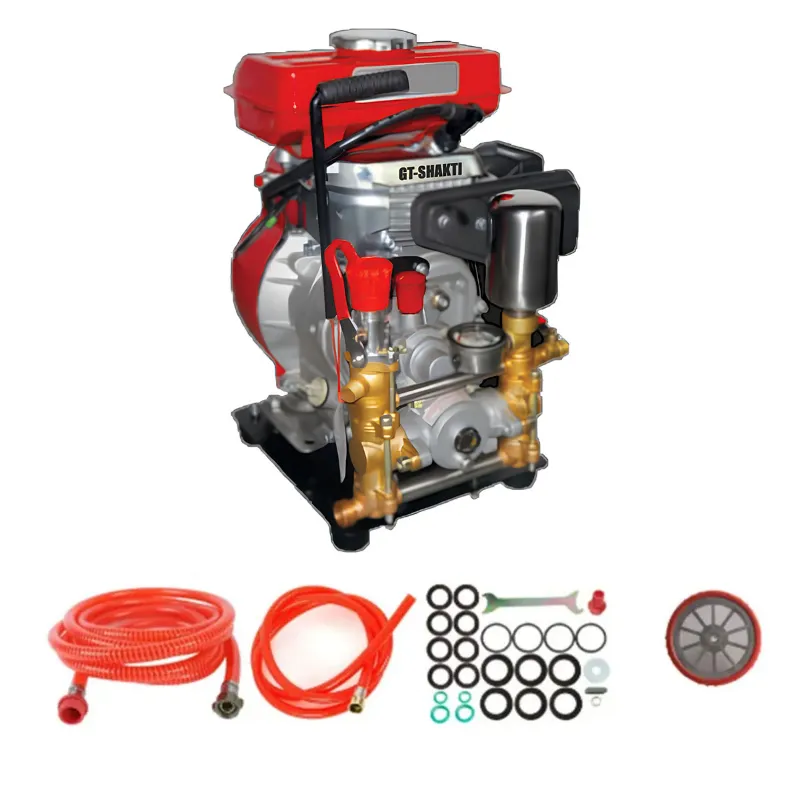

Accessories
:- Suction Pipe
- Overflow Pipe
- Filter
- Tool Kit & Accessories
- User manual
Applications
:- Agriculture Pest Spraying.
- Horticulture Pest Spraying.
- Chemical Spraying in long trees like Palm, Mango, Areca nut etc.
- Cleaning.
- Car washing.
- Industrial High pressure washing.
Usage
:Before you start:
- Read the Manual properly and Wear Personal Protective Equipment.
- Fill the tank with petrol (No 2T oil needed) there is a separate chamber for pouring the engine oil.
- Attach the suction pipe to the water source and ensure it is submerged properly. Connect the discharge pipe to where you want to direct the water.
- Fill the pump with water to remove air and create suction. This may involve running water through the suction line before starting.
Starting the Engine:
- Adjust the choke to the closed position for cold starts.
- Open the fuel valve to allow fuel flow to the engine.
- Pull the recoil starter. Gradually adjust the choke as needed until the engine runs smoothly.
- Set throttle to an appropriate level for desired pressure and flow rate.
- Keep an eye on any pressure gauges to ensure optimal performance and avoid overloading.
Shutting Down:
- Turn off the engine using the ignition switch or by pulling on a kill switch.
- Carefully disconnect pipes after ensuring that pressure has been relieved.
