Brand : Generic (Imported)

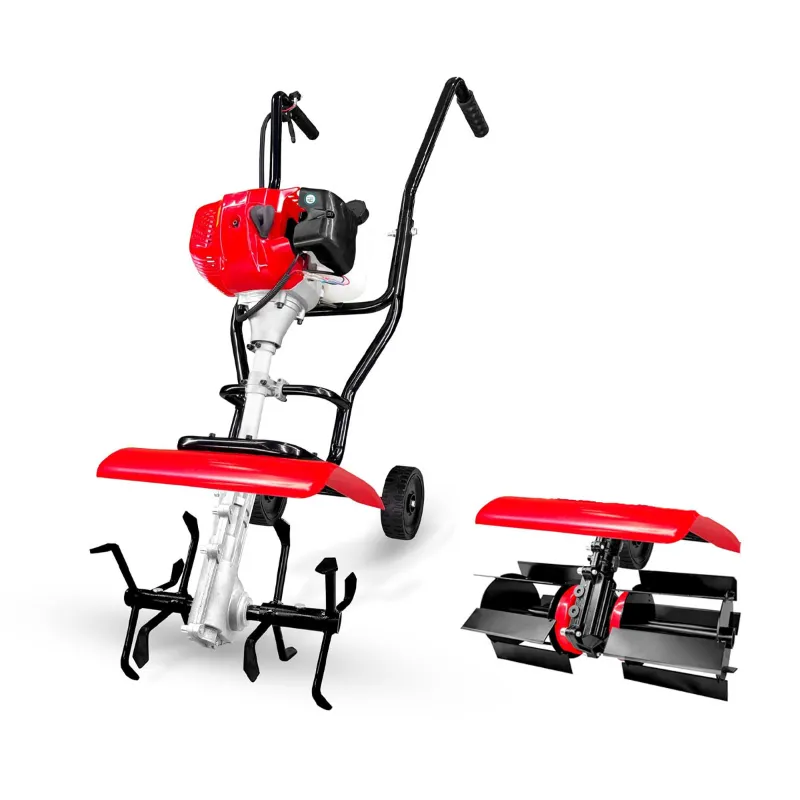

Heady Duty 2 Stroke 52 CC 2 in 1 Mini Power Tiller / Mini Cultivator With Flat & Deep Tilling Blades
SKU : TI-HD-26365
MRP :
₹12500
Get Extra ₹188 OFF on Prepaid Orders
Delivery By: Aug 10 - Aug 12
Show Similar
Notify Me
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heady Duty 2 Stroke 52 CC 2 in 1 Mini Power Tiller / Mini Cultivator
 With Flat & Deep Tilling Blades
With 2 HP Power & 52 CC Displacement
Country of origin: China
Specification
  • Brand: Generic (Imported)
  • Power : 2 hp
  • Weight (Approx.) : 20 kg
  • Fuel Used : Petrol
  • Displacement : 52 cc
  • Stroke : 2
  • Engine (RPM): 7000 RPM
  • Cutting Width: 10 Inch (254 cm) Approx
  • Cutting Depth: 1-6 Inch (2.54-15.24 cm) Approx
  • Fuel Tank Capacity : 1 Ltr
  • Fuel Consumption: 700 ml/hour
  • Oil (Mixing): 70 ml(2T)oil in 1 L of Petrol

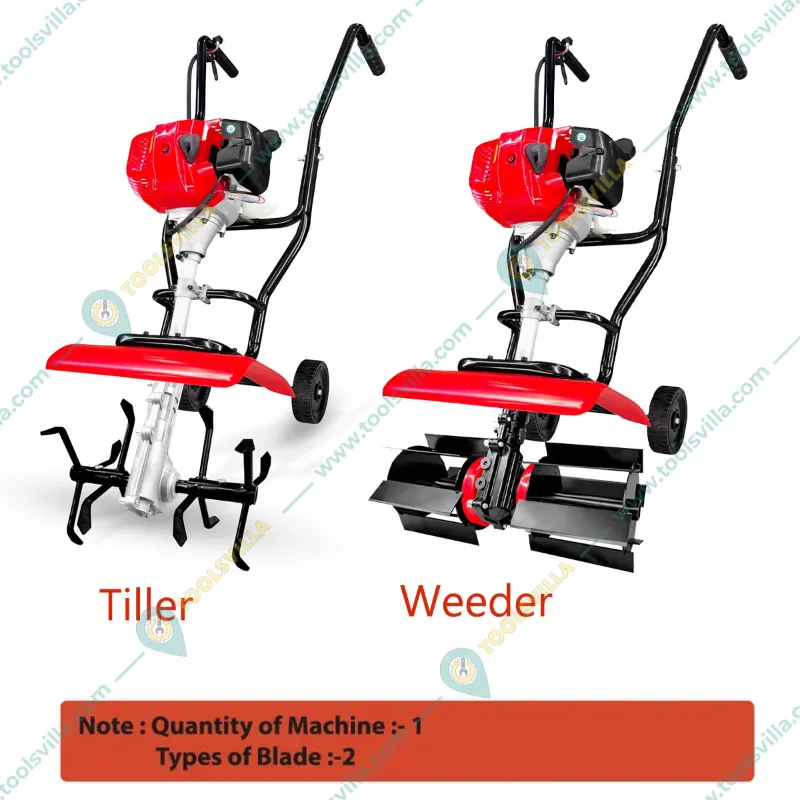

Note : 2 Type of Blades
Description
The Heady Duty 2 Stroke 52 CC 2 in 1 Mini Power Tiller / Mini Weeder with Round & Flat Blades is a compact and versatile agricultural tool designed for efficient soil preparation, weeding, and aeration. Powered by a robust 52 CC, 2-stroke petrol engine, it delivers strong performance for breaking up hard and compacted soil, making planting easier and faster.

Features

 :
  • Designed to efficiently prepare soil, sow seeds, plant crops, and seamlessly apply fertilizers and herbicides. It can also be used for inter-cultivating, turning the soil, weeding, aerating and making rows for plantation.
  • Fuel-efficient and easy to handle.
  • Designed to be safe, quick, and reliable with a big bottom frame and low center of gravity for good stability
  • Recoil ignition for easy starting.
  • Suitable for narrow row cultivation and vegetable cultivation.
  • Effective for weed control in dry and semi-dry fields.
  • Two-handed safety switching to prevent accidental starts

Applications

 :
  • Soil Preparation: Power tillers aid in preparing the soil for sowing seeds and planting crops. They are used to loosen and smooth soil before planting.
  • Tilling, Plowing, and Cultivating: They can be used for tilling, plowing, and cultivating. The premium deep tilling blade ensures effective soil turning and preparation.
  • Weeding: Tillers can be used for weeding. They are useful in controlling weeds in dry and semi-dry fields.
  • Inter-Cultivating: Mini tillers are used for inter-cultivating, turning the soil, and making rows for planting.
  • Application of Fertilizers and Herbicides: They can be used to spray fertilizers, water, and herbicides.
  • Harvesting and Threshing: They are used in harvesting crops and threshing them to prepare the final product for transportation.

Usage

 :
Before you start :
  • Read the Manual properly  and Wear Personal Protective Equipment.
  • Install the handlebar, adjusting its position and connecting the clutch, gun, and backshift cables
  • Install the frames and protection components on the rotary tiller
  • Fix the running wheels on both sides of the hexagonal shaft using bolts and nuts

Starting the machine:
  • Mix 2T oil with petrol in the desired ratio (40ml oil in 1liter petrol).
  • Turn on the fuel valve.
  • Set the choke to the "start" position if cold starting.
  • Firmly pull the starter rope until the engine starts. Adjust the choke as necessary once it’s running.
  • Hold down the clutch lever to engage and start tilling.

How to Stop the Machine :
  • Gradually release the clutch lever to stop tilling.
  • Switch off the engine using the stop switch or throttle control.
