Brand : Kirloskar

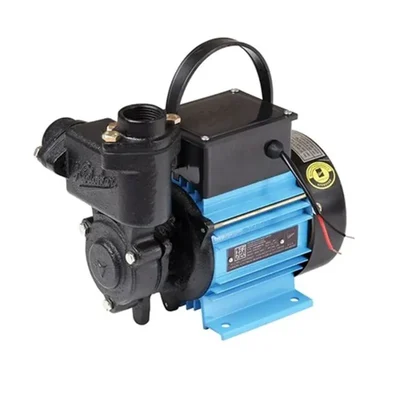

Kirloskar 1 Hp Single Phase Self Priming Monoblock Pump, 28m Max. Head, 50 LPM (Popular LV) - 1 Year Warranty
SKU : TI-K1-22085
MRP : ₹11000
₹7900
28% OFF!
-
1
+
Get Extra ₹119 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 1 Hp Single Phase Self Priming Monoblock Pump
28m Max. Head, 50 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 1 hp
  • Weight (Approx.) : 10 kg
  • Flow Rate : 50 lpm
  • Head : 28 meter
  • Model No. : Popular LV
  • Product Type : Self Priming Monoblock Pump
  • Brand : Kirloskar
  • Wattage : 0.75 kW
  • Power : 180-240 V AC Supply
  • Electricity Connection : Single Phase
  • Full Load Current : 2.6 Amp
  • Head Range : 28-6 Meter (91 to 19 Feet)
  • Pipe Size (Suction x Delivery) : 25 x 25 mm
  • Discharge Range : 50-10 LPM

Materials of Construction :
  • Motor Body : Extruded Aluminum Cover
  • NDE : Cast Iron
  • Delivery Casing : Cast Iron
  • Mounting Casing : Cast Iron
  • Impeller : Brass
Description
A self-priming monoblock pump is a kind of pump that has both a monoblock design and self-priming characteristics. Before beginning regular pumping operations, a self-priming monoblock pump is made to automatically remove air from the suction line and prime itself with liquid. This feature guarantees effective operation and removes the need for manual priming. Installation is made easier and requires less space thanks to the monoblock design, which combines the pump and motor into a single unit.

Features

 :
  • Motors can withstand wide voltage fluctuations from 180 to 240 Volts
  • Self priming up to 3 meters
  • Thermal Overload Protector (TOP) for motor safety
  • Ball bearings on both sides are double shielded - no need for external lubrication through entire life cycle
  • TEFC capacitor start and run motor
  • Class ‘B’ insulation.
  • Fitted with high quality ceramic Vs carbon mechanical seal.
  • Aluminum extruded motor body for better heat dissipation and corrosion resistance
  • Powder coated casting parts for longer life

Applications

 :
  • Water supply for use in bungalows, apartments, hotels, farmhouses etc.
  • Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering gardens

Warranty :
  • One Year Onsite Warranty.
