1 HP Single Phase Shallow Well Monoblock Pump, KSW/KSJ-10
61-2 LPM Discharge Rate & Max Head 6-40 m
1 Year Warranty
Description

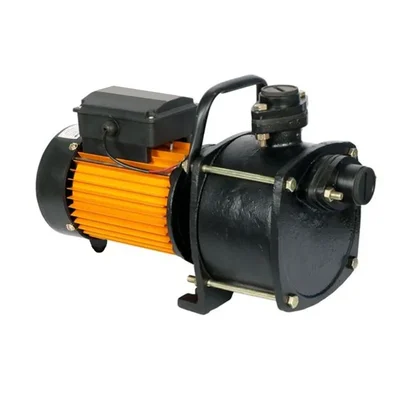

Kirloskar KSW/KSJ-10 - 1HP Shallow Well Monoblock Pump (1 Year Warranty)
Description :
Kirloskar KSW is a shallow well jet pump suitable for a high head application. It is self-priming up to 8 metres at mean sea level. It has an aluminium motor body and is fitted with Thermal Overload Protector to prevent motor burning. Replaceable wear and tear parts allow for easy maintenance and longer life. The pump is available in vertical as well as horizontal versions. Replaceable wear and tear parts allow for easy maintenance and longer life. The pump is available in vertical as well as horizontal versions.
Features :
Can withstand wide voltage fluctuations from 180 to 240 Volts
Suction lift up to 40 meters
No moving parts inside the well, hence easy to service
Available with twin type as well as packer type jet units, in vertical as well as horizontal versions
Designed to prevent overloading and motor burning out
Models incorporated with IP-44 protection and class 'B' insulation
Three phase models also available with IP- 55 protection on request
Dynamically balanced rotating parts ensure minimum vibrations
Replaceable wear and tear parts and hence longer life
CED coated wetted components for long life and rust free operations
More hygienic operations for drinking water
Fitted with shielded ball bearing – no lubrication required through the life cycle
Specification :
Model No. : KSW/KSJ-10
Product Type : Shallow Well Monoblock Pump
Brand : Kirloskar
Motor Power : 1 HP (0.75 kW)
Power : 180 - 240 V AC Supply
Electricity Connection : Single Phase
Head Range : 6-40 m
Suction x Delivery Size : 25 x 25 mm
Max. Flow Rate : 61 to 2 LPM
Weight : 20 kg (Approx.)
Materials of Construction :
Impeller : Cast Iron
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Shaft : Carbon Steel
Jet Unit : Cast Iron/Stainless Steel
Warranty :
One Year warranty on manufacturing defects only
Applications :
Gardening and irrigation
Lawn sprinklers
Clear water handling in industries
Water supply for use in high rise apartments, buildings and hotels
