Brand : Kirloskar

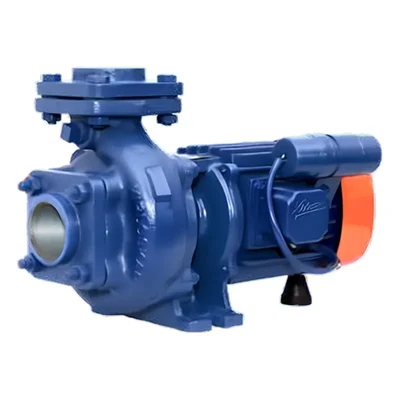

Kirloskar 1.5HP Single Phase Centrifugal Monoblock Pump, 51120 LPH, 80x80 mm (KAM-15 Low Voltage) - 1 Year Warranty
SKU : DK-KB-2109
MRP : ₹26600
₹16699
37% OFF!
-
1
+
6 people have bought this recently
Get Extra ₹250 OFF on Prepaid Orders
Delivery By: Nov 11 - Nov 13
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KAM-15 LV) 1.5 HP Single Phase Monoblock Pump
852 - 390 LPM Discharge Rate
9 - 14 Meter Head Range
Suitable for Gardening, Lawn sprinklers, Domestic Purpose etc.
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 1.5 hp
  • Weight (Approx.) : 42 kg
  • Flow Rate : 852 lpm
  • Head : 14 meter
  • Model No. : KAM-15 LV
  • Product Type : Monoblock Pump
  • Brand : Kirloskar
  • Motor Power : 1.1 kW
  • Rated Voltage : 200 V, 50 Hz, AC Supply
  • Electricity Connection : Single Phase
  • Head Range : 9 - 14 Meter
  • Pipe Size (Suction X Delivery) : 80 x 80 mm
  • Discharge Range : 852 - 390 LPM (51120 - 23400 LPH)
Materials of Construction :
  • Impeller : Cast Iron
  • Delivery Casing : Cast Iron
  • Motor Body : Cast Iron
  • Pump Shaft : Carbon Steel.
Description
A monoblock pump is a type of pump that is characterized by its compact and self-contained design, where the pump, motor, and drive shaft are combined into a single unit. Centrifugal monoblock pumps are commonly used in various applications such as water supply, irrigation. These pumps operate based on the principle of centrifugal force, where the rotation of the impeller creates a centrifugal force that pushes the liquid towards the outer edges of the pump casing, resulting in increased pressure and flow rate.

Features

 :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage
  • Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminating the necessity of operating air release cock and ensures swifter and smoother operations.
  • Flatter Efficiency Curve : Minimum variations in efficiency during entire operating range increases the utility of pump set for variable conditions.
  • Design to Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
  • CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
  • Easy Maintainable Designs : Easy maintainable design and batter interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
  • High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.

Applications

 :
  • Gardening and small farm irrigation
  • Lawn sprinklers
  • Construction site
  • Domestic and community water supply
  • Water transfer and circulation
Warranty :
  • 1 Year Onsite Warranty.
