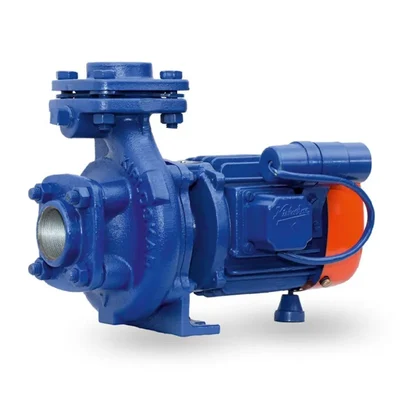

Kirloskar 0.5HP Single Phase Centrifugal Monoblock Pump, 10m Max. Head, 12240 LPH, 50x40 mm (KDS-0510) - 1 Year Warranty
SKU : DK-KB-2110
MRP : ₹15400
₹10150
34% OFF!
-
1
+
1894 people have viewed this recently
Get Extra ₹152 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KDS-0510) 0.5 HP Single Phase Monoblock Pump
204 to 60 LPM Discharge Range
6 to 10 meters Head Range
Suitable for Gardening, Lawn sprinklers, Domestic Purpose etc.
One Year Warranty.
Country of origin: India
Specification
Description
Kirloskar 0.5HP Single Phase Centrifugal Monoblock Pump, 10m Max. Head, 12240 LPH, 50x40 mm (KDS-0510) - 1 Year Warranty

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.
  • Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
  • TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
  • CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
  • Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
  • High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
  • Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.

              Specifications :
              • Model No. : KDS-0510
              • Product Type : Monoblock Pump
              • Brand : Kirloskar
              • Power Source : Corded Electric
              • Motor Power : 0.37 kW
              • Power Supply : 210V, 50 Hz, AC Supply
              • Electricity Connection : Single Phase
              • Head Range : 20 to 33 Feet (6 to 10 meters)
              • Pipe Size (Suction x Delivery) : 50 x 40 mm
              • Discharge Rate : 204-60 LPM (12240 to 3600 LPH)

              Materials of Construction :
              • Impeller : Cast Iron/Noryl
              • Delivery Casing : Cast Iron
              • Motor Body : Cast Iron
              • Pump Shaft : Carbon Steel
              • Sealing : Mechanical Seal

              Applications :
              • Gardening and small farm irrigation
              • Lawn sprinklers
              • Water supply for high rise buildings
              • Domestic and community water supply
              • Water transfer and circulation

                    Warranty :
                    • One Year Onsite Warranty.
