Brand : Kirloskar
Kirloskar 1.5 HP Single Phase Centrifugal Monoblock Pump, 29880 LPH, 50 x 50 mm (KDS-1.514) - 1 Year Warranty
SKU : DK-KB-2112
MRP : ₹21700
₹13800
36% OFF!
-
1
+
4 people have bought this recently
Get Extra ₹207 OFF on Prepaid Orders
Delivery By: Jul 20 - Jul 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

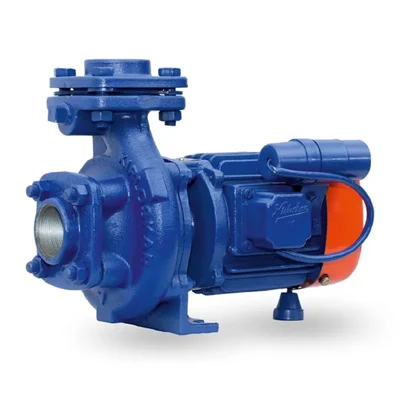

Kirloskar KDS-1.514 1.5 HP Single Phase End Suction Monoblock Pump
45ft Max. Head, 498 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 1.5 hp
  • Weight (Approx.) : 32 kg
  • Flow Rate : 498 lpm
  • Head : 14 meter
  • Model No : KDS-1.514
  • Product Type : Monoblock Pump
  • Brand : Kirloskar
  • Power : 1.1 kW
  • Power : 210 V AC Supply
  • Electricity Connection : Single Phase
  • Current : 8.8 Amp
  • Head Range : 14 to 8 Meter (45 to 26 Feet)
  • Discharge Rate : 29880 to 12960 LPH (498 to 216 LPM)
  • Protection : IP 44
  • Pipe Size (Suction X Delivery) : 50 x 50 mm

Materials of Construction :
  • Motor Body : Cast Iron
  • Impeller : Cast Iron
  • Delivery Casting : Cast Iron
  • Shaft : Carbon Steel
  • Shaft Sleeve : Bronze

Description
A monoblock pump is a type of pump that is characterized by its compact and self-contained design, where the pump, motor, and drive shaft are combined into a single unit. Centrifugal monoblock pumps are commonly used in various applications such as water supply, irrigation. These pumps operate based on the principle of centrifugal force, where the rotation of the impeller creates a centrifugal force that pushes the liquid towards the outer edges of the pump casing, resulting in increased pressure and flow rate.

Features

 :
  • Can withstand wide voltage fluctuation: From 180- 240 Volts
  • Top flat efficiency curve: minimum variation in efficiency in an entire operating range
  • Efficiency at par with internationally available pumps- higher up to 10 points than a minimum required by Indian Standards specifications
  • Models are with IP-44 protection
  • Class 'B' insulation
  • Designed to prevent overloading and motor burning
  • Dynamically balanced rotating parts ensure minimum vibrations
  • Replaceable wearing parts and hence longer life
  • Designed for automatic air release during priming CED coating cast iron components long life & rust-free
  • More hygienic & potable for drinking water.

Applications

 :
  • Gardening and small farm irrigation
  • Agriculture for clear water handling
  • Water supply for Agriculture
  • Use in Apartments, Buildings and Hotels

Warranty :
  • One Year Onsite Warranty.
