Brand: Kirloskar

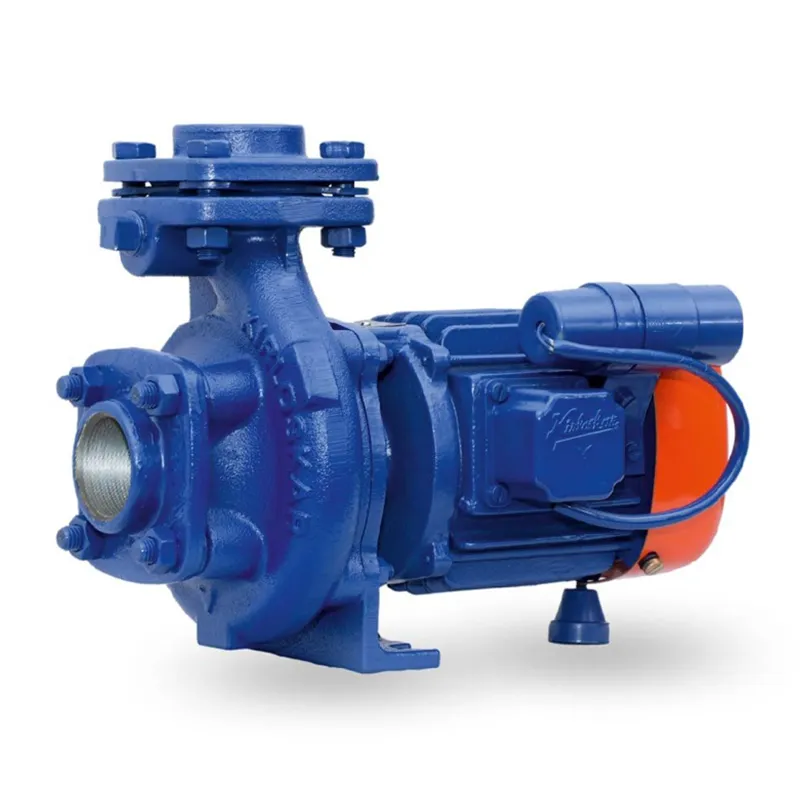

Kirloskar (KDS-212N) 2 HP 2 Pole Single Phase Monoblock Pump With 1 Year Warranty, Size 80x80 mm

SKU: DK-KB-2114
Regular Price : ₹28200
Offer Price : ₹18300 (Including GST)
Get extra ₹549 Discount (On Checkout)
Qty:
Easy
Returns
Quality
Assurance
Trusted
Delivery
After Sales
Assistance

Short Description

Kirloskar (KDS-212N) 2 HP Single Phase Monoblock Pump
846 to 450 LPM Discharge Rate
6 - 12 M Head Range
Suitable for Gardening, Lawn sprinklers, Domestic Purpose etc.
1 Year Warranty

Description

Kirloskar (KDS-212N) 2 HP 2 Pole Single Phase Monoblock Pump With 1 Year Warranty, Size 80x80 mm

Features :
  • Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 350 to 440 volts and reduces motor burning in case of low voltage.
  • Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump.
  • TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
  • CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
  • Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations, thus eliminates the necessity of operating air release cock and ensures swifter and smoother operations.
  • High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
  • Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, thus ensuring consistent performance as concentricity is maintained.
  • Designed to Prevent Overloading : Lesser chances of motor burning as the motor does not get overloaded even if the pump is operated at a head lower than recommended, thus ensuring substantial cost savings due to low maintenance and breakdown.

Specifications :
  • Model No. : KDS-212N
  • Product Type : Monoblock Pump
  • Brand : Kirloskar
  • Motor Power : 2 HP (1.5 kW)
  • Power : 230 V, 50 Hz, AC Supply
  • Electricity Connection : Single Phase
  • Head Range :  6-12 M (20-39 Feet)
  • Pipe Size (Suction x Delivery) : 80 x 80 mm
  • Discharge Rate : 846 to 450 Liters Per Minute (50760-27000 LPH)
  • No Of Pole : 2
  • Weight : 45 Kg (Approx.)

Materials of Construction :
  • Impeller : Cast Iron/Noryl
  • Delivery Casing : Cast Iron
  • Motor Body : Cast Iron
  • Pump Shaft : Carbon Steel
  • Sealing : Mechanical Seal

Applications :
  • Gardening and small farm irrigation
  • Lawn sprinklers
  • Water supply for high rise buildings
  • Domestic and community water supply
  • Water transfer and circulation

        Warranty :
        • One Year Warranty on Manufacturing Defects Only.
