Brand: Toshweld

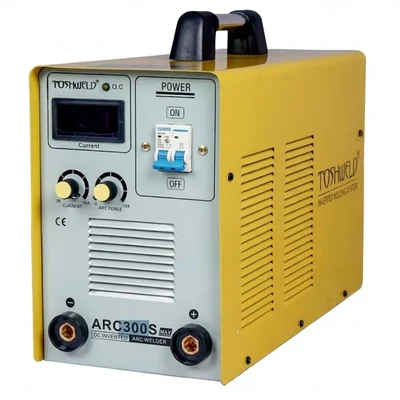

Toshweld 300 Amp Single Phase MOSFET Welding Machine With 1 Year Warranty (ARC 300 S)
SKU: TI-T3-51442
Delivery By: Dec 9 - Dec 11
MRP : ₹21318 ₹16399
23% OFF!
Delivery By: Dec 9 - Dec 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹16399 (Including GST)
MRP : ₹21318
23% OFF!
Get Extra ₹246 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Input Voltage AC 230V ± 15% (Single Phase)
Output Current Range 20 - 300 Amps
Technology MOSFET Inverter
Warranty 1 Year
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 13.5 kg
- Output Current Range : 300 amp
- Technology : MOSFET
- Model : ARC 300 S
- Technology : MOSFET Inverter
- Input Voltage : AC 230V ± 15% (Single Phase)
- Plate Thickness Capacity : 2.0 mm - 10.0 mm
- Compatible Electrode Size : 2.0 mm - 4.0 mm
- No-Load Voltage : 66 V
- Input Power Capacity : 9.4 KVA
- Rated Input Current : 14.4 A
- Power Factor : 0.93
- Dimensions : 20" x 8" x 15"
- Warranty : 1 Year
Description
Bring industrial strength to your workshop with the Toshweld ARC 300 S. This robust Single Phase MOSFET welder delivers a massive 300 Amp output using standard 230V power. Weighing 13.5kg, it is built for durability and easy repairability, making it ideal for heavy-duty fabrication where Three Phase power is unavailable. Includes 1-year warranty.
Features
:- High Power Single Phase Delivers a strong 300 Amp output on a standard 230V connection allowing for heavy welding without industrial power lines
- Durable MOSFET Technology Uses time tested MOSFET architecture known for excellent arc stability, ruggedness, and low cost repairability
- Heavy Duty Build Construction Weighing 13.5kg this machine features a larger chassis and heat sinks for superior cooling during long operations
- Deep Penetration Capable of welding steel plates up to 10mm thick with ease ensuring strong structural joints
- Wide Electrode Support Compatible with welding rods from 2.0mm to 4.0mm making it versatile for both light and heavy fabrication
Accessories
:- 1.5 Meter Welding Cable With Holder
- 1.5 Meter Welding Cable With Earthing Clamp
Applications
:- Heavy Fabrication Workshops without 3-Phase Power
- Gate and Grill Manufacturing
- Structural Steel Repair
- Agricultural Machinery Maintenance
- General Metal Fabrication
Usage
:Usage Guidance (How to use) :
- Power Requirements Connect the machine to a robust 230V power source with a heavy duty plug and breaker to handle the load
- Rod Selection Choose a welding rod size between 2.0mm and 4.0mm based on the metal thickness you are joining
- Amperage Adjustment Rotate the current knob to set the amperage appropriate for your rod size generally higher for thicker rods
- Safety Gear Always wear a welding helmet, leather gloves, and protective clothing to shield against heat and UV radiation
Maintenance Guidance :
- Dust Cleaning Use dry compressed air to blow out dust from the internal MOSFETs and heat sinks monthly to prevent overheating
- Connection Check Inspect the input cable and electrode holder connections regularly to ensure they are tight and damage free
- Dry Storage Keep the machine covered in a clean dry area when not in use to protect the internal components from moisture
