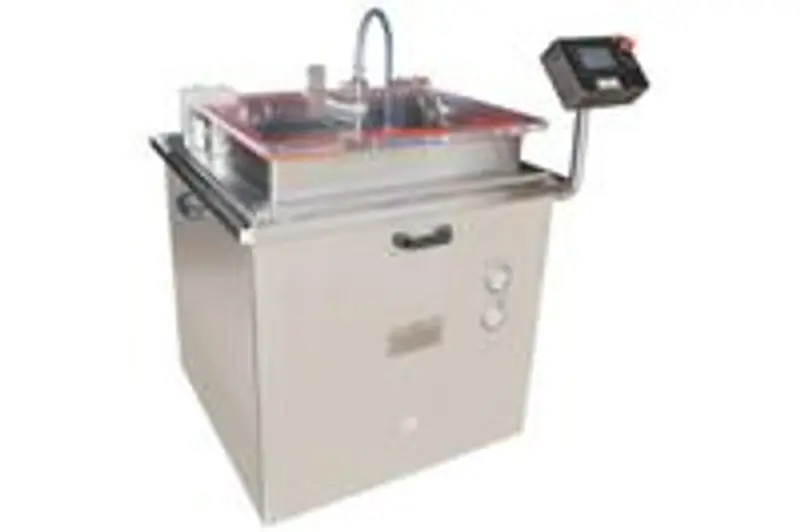

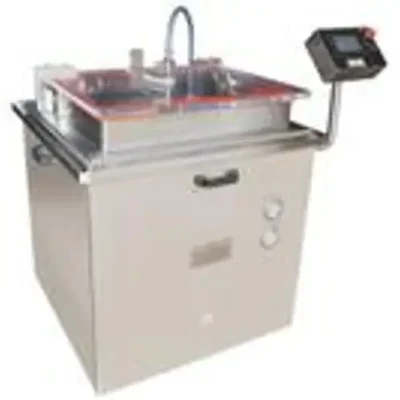

Semi Automatic PLC Operated Multijet Ampoule/Vial Washing Machine
SKU : SS-20200407
MRP :
₹150000
Get Extra ₹2,250 OFF on Prepaid Orders
Delivery By: Aug 7 - Aug 9
Get Best Price
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
PLC Operated Vial Washing Machine
Semi Automatic
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Power : 1 hp
  • Weight (Approx.) : 200 kg
  • Material : Hardened Steel
  • Capacity : 8 l
Description
Semi Automatic PLC Operated Multijet Ampoule/Vial Washing Machine

Description :
  • The dump loading procedure may be used, if the Ampoules/Vials are ready to dump Boxes, which will have exactly into the same number of Ampoules/Vials and the pitch, as the loading tray. Alternatively, each Ampoules/Vials have to be arranged into the tray. The loading trays are placed directly into the Machine and the Handle bar into the lowered for Automatic centering of Washing needles into the Ampoules/Vials mouth. The Top cover is also lower and switch is operated Automatic Sequential washing both from inside & outside of each individual Ampoule/Vial. The machine will automatically stopped after one complete cycle & for removal of tray, reverse procedure is to be observed.

Features :
  • Very Simple & Robust Construction for a long life and continuous service.
  • Automatic Washing Cycle Operation by Programmable PLC with HMI.
  • Each Cycle Time can be Adjustable.
  • Sound design concept of Pump and Solenoid Valves for reserves & continuous supply of washes Media.
  • Both internal & external washing ensuring absolutely clean ampoules/vials after Sequential Washing.
  • Acrylic top cover for clear view of washing events taking place in the machine.
  • In the event of acrylic cover lifted during cycle operation, the machine will Automatically Stop and Restart from the 1st Cycle, when cover is pushed

Specifications :
  • Output : 30 to 40 Cycles/Hour
  • Ampoule Dia : 10 mm to 21.5 mm
  • Ampoule Height : 60 mm to 140 mm
  • Vial Dia : 15 mm to 56 mm
  • Vial Height : 56 mm to 110 mm
  • Overall Dimension : 1100 mm L X 1050 mm W X 1200 mm H
  • Power Specification : 1.0 HP, 3 PHASE, 440 VOLTS, 50 Hz, 4 Wire System
  • Utility : DM Water : 8 Liter/cycle
  • WFI Water : 8 Liter/cycle
  • Air : 20 CFM @ 5 Bar
