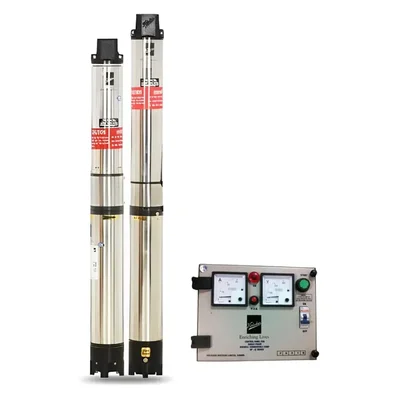

Kirloskar 1HP 8 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 203ft Head - 1.6 Year Warranty (NEO 60-1008 CP)

Brand: Kirloskar

Kirloskar 1HP 8 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 203ft Head - 1.6 Year Warranty (NEO 60-1008 CP)

Name: Kirloskar 1HP 8 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 203ft Head - 1.6 Year Warranty (NEO 60-1008 CP)
Brand: Kirloskar
SKU: TI-KN-12767
Price: 17299 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-KN-12767

MRP : ₹29400 ₹17299

41% OFF!

562 people have viewed this recently

Get Extra ₹259 OFF on Prepaid Orders

Delivery By: Dec 23 - Dec 25

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹17299 (Including GST)

MRP : ₹29400

41% OFF!

Get Extra ₹259 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

Kirloskar (NEO 60-1008 CP) 1.0 HP Submersible Pump With CP

1 Phase, Water Cooled

62M Max. Head

6300 LPH Max. Discharge

1.6 Years Of Warranty

Country of origin: India

Brand: Kirloskar
Power : 1 hp
Weight (Approx.) : 18 kg
Flow Rate : 105 lpm
Head : 62 meter

Model No. : NEO 60-1008 CP
Product Type : Borewell Submersible Pump
Brand : KIRLOSKAR
Wattage : 0.75 kW
No Of Stages : 8
Outlet Size : 32 mm
Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
Rated Current : 8.2 Amp.
Max. Head : 62 Meter (203 Feet)
Max. Discharge Rate : 105 LPM (6300 LPH)
Borewell Size : 100 mm (4 inch)
Cooling Type : Water Cooled
Insulation : B Class
Protection : IP 68
Winding Material : Copper

Material Of Construction :

Pump Housing : Stainless Steel
Pump Shaft : Stainless Steel
Motor Housing : Stainless Steel
Motor Shaft : Stainless Steel
Thrust Bearing : Carbon + Stainless Steel
Motor/Pump Bushes : Gun Metal
Impeller : Noryl
Diffuser : Noryl
NRV : Cast Iron
Suction : Cast Iron

A water-cooled submersible pump is an electric pump designed to operate fully submerged in the fluid it's pumping, utilizing the surrounding water to dissipate heat from its motor. This design ensures efficient cooling and allows for continuous operation in applications like dewatering, irrigation, and water supply.

Features

Wide Voltage Range Operability : Voltage range is 180 - 240 Volts. Protects motor from burning due to lower/higher voltage
High Efficiency and Energy-saving Design : Higher output, lesser power consumption
Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Winding Wires for longer and trouble free life.
Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life.
CED - Cathodic Electro Deposition Coating : Better resistance against corrosion.
Nationwide Service Network : Easy availability of spares and prompt after sales services through nationwide company authorised service centers.
