Brand : Kirloskar

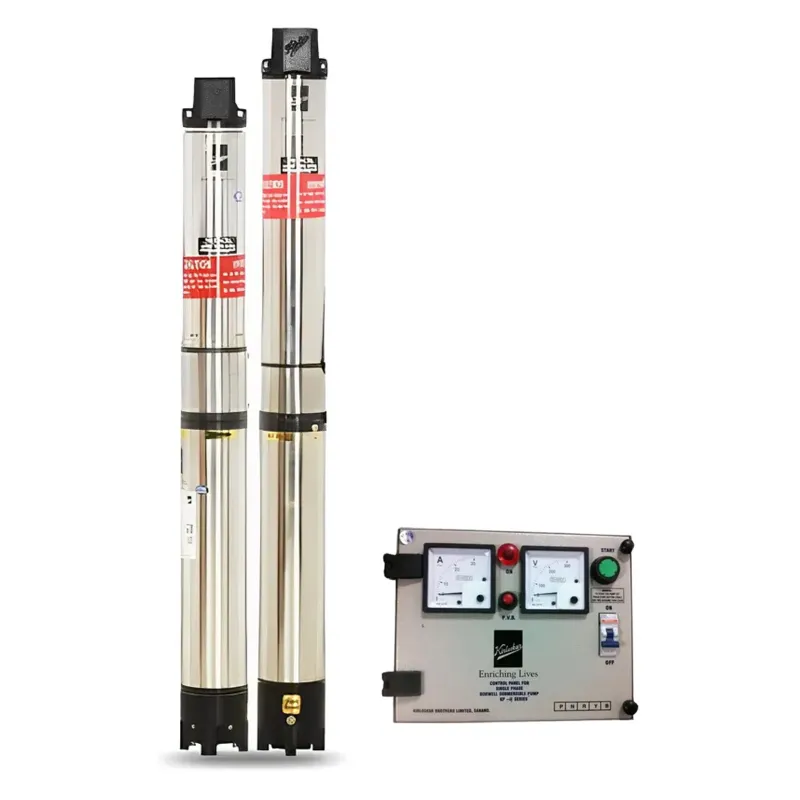

Kirloskar 1.5HP 14 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 358ft Head-1.6 Year Warranty(NEO 60-1514 CP)
SKU : TI-KN-12782
MRP : ₹26999
₹20000
26% OFF!
-
1
+
1510 people have viewed this recently
Get Extra ₹300 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (NEO 60-1514 CP) 1.5 HP Submersible Pump With CP
1 Phase, Water Cooled
109M Max. Head
6300 LPH Max. Discharge
1.6 Years Of Warranty
Country of origin: India
Specification
Description
Kirloskar 1.5HP 14 Stage(4 inch) 1Ph Water Cooled Submersible Pump With CP, 358ft Head-1.6 Year Warranty(NEO 60-1514 CP)

Features :
  • Wide Voltage Range Operability : Voltage range is 180 - 240 Volts. Protects motor from burning due to lower/higher voltage
  • High Efficiency and Energy-saving Design : Higher output, lesser power consumption
  • Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation
  • Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate, 99.9 % pure Copper Winding Wires for longer and trouble free life.
  • Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
  • Sand Fighter Designs : Innovative Sand Fighter Designs restricts the entry of sand in motors, protects the pump and motor bushes to perform well in sandy borewells and increase the pump set life.
  • CED - Cathodic Electro Deposition Coating : Better resistance against corrosion.
  • Nationwide Service Network : Easy availability of spares and prompt after sales services through nationwide company authorised service centers.

Specification :
  • Model No. : NEO 60-1514 CP
  • Product Type : Borewell Submersible Pump
  • Brand : KIRLOSKAR
  • Wattage : 1.10 kW
  • No Of Stages : 14
  • Outlet Size : 32 mm
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Rated Current : 11.5 Amp.
  • Max. Head : 109 Meter (358 Feet)
  • Max. Discharge Rate : 105 LPM (6300 LPH)
  • Borewell Size : 100 mm (4 inch)
  • Cooling Type : Water Cooled
  • Insulation : B Class
  • Protection : IP 68
  • Winding Material : Copper

Material Of Construction :
  • Pump Housing : Stainless Steel
  • Pump Shaft : Stainless Steel
  • Motor Housing : Stainless Steel
  • Motor Shaft : Stainless Steel
  • Thrust Bearing : Carbon + Stainless Steel
  • Motor/Pump Bushes : Gun Metal
  • Impeller : Noryl
  • Diffuser : Noryl
  • NRV : Cast Iron
  • Suction : Cast Iron

Areas Of Application :
  • Domestic and community water supply
  • Rural water supply
  • Gardening and small farm irrigation
  • Construction site
  • Water supplies for high rise building

Warranty :
  • 1.6 Years on site Warranty
