2 HP, Single Phase, Oil Cooled
52M Max. Head, 195 LPM Max. Discharge
2 Years Warranty
Brand : Kirloskar

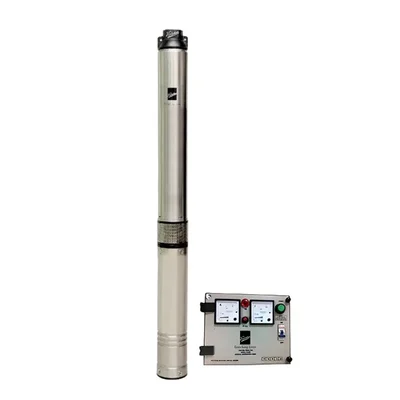

Kirloskar 2 Hp 8 Stage(4 inch) 1Ph Oil Filled Submersible Pump With CP (KP4 JALRAAJ UVA 150-2008 CP) - 2 Years Warranty
SKU : TI-KK-13373
MRP : ₹30000
₹24000
20% OFF!
-
1
+
991 people have viewed this recently
Delivery By: Aug 5 - Aug 7
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Kirloskar (KP4 JALRAAJ UVA 150-2008 CP) Borewell Submersible Pump
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 2 hp
- Weight (Approx.) : 31 kg
- Flow Rate : 195 lpm
- Head : 52 meter
- Model No : KP4 JALRAAJ UVA 150-2008
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Wattage : 1.5 kW
- Electricity Connection : Single Phase
- Voltage : 220 Volt, 50 Hz, AC Power Supply
- Rated Current : 11 Amp.
- Cooling Type : Oil Filled
- No. Of Stage : 8
- Outlet Size. : 50 mm
- Head Range : 52 to 17 Meter (171 to 56 Foot)
- Discharge Range : 0 to 195 LPM (0 to 11700 LPH)
- Borewell Size : 100 mm(4 inch)
- Insulation : F Class
- Protection : IP 68
- Winding Material : Copper
Material Of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Motor Bearing : Ball Bearing
- Pump Bushes : NBR
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Description
An oil-filled submersible pump has its motor filled with mechanical oil that acts as a coolant and lubricant, protecting internal components and allowing for continuous, heavy-duty operation. These pumps are typically used in industrial and agricultural settings, deep borewells, and applications requiring high horsepower and continuous duty, where their superior cooling and lubrication lead to longer lifespan and better performance.
Features
:- High Efficiency And Energy Saving Design : Higher output, lesser power consumption.
- Wide Voltage Design : The voltage range is 150 to 240 Volts. It protects the motor from burning due to lower/higher voltage.
- Dynamically Balanced Rotating Parts : Resulting in lesser vibrations and longer trouble-free operation.
- Designed To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
- Flatter Efficiency Curve : Minimal drop in efficiency during entire operating range, resulting in lower operating cost.
- Suitable For Horizontal Applications : High capacity angular ball bearing motor construction suited to operate in the horizontal position.
Accessories
:- Control Panel
Applications
:- Domestic and community water supply
- Water supply for high rise building
- Gardening and small farm irrigation
- Construction site
- Groundwater supply to waterworks
Warranty :
- 2 Years Onsite Warranty.
