Brand : SPEAR

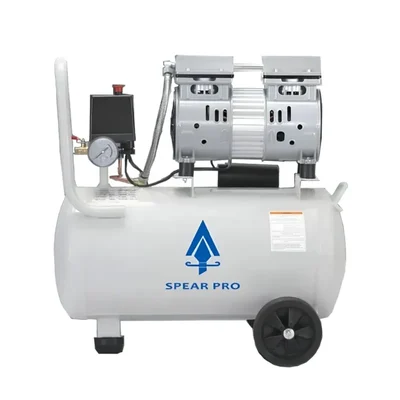

Spear 8 Litres Oil Free Sound Less Copper Coil Air Compressor with 1 HP Motor (1 Year Warranty)
5.0
SKU : AB-GAHL-20231080
MRP : ₹11180
₹6699
40% OFF!
-
1
+
20 people have bought this recently
Get Extra ₹100 OFF on Prepaid Orders
Delivery By: Nov 4 - Nov 6
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
8 Litres Oil Free Air Compressor
1 HP Motor power
8 bar (116 psi) Pressure
135 LPM Air Flow Rate
1 Year Warranty

Country of origin: China
Specification
  • Brand: SPEAR
  • Weight (Approx.) : 13 kg
  • Max. Pressure : 8 bar
  • Tank Capacity : 8 Litres
  • Motor Power : 1 HP (0.75 kW)
  • Coil Type : Copper Coil
  • Max. Pressure : 116 psi
  • Air Flow Rate : 135 LPM / 4.8 CFM
  • Noise Level : ≤ 60 dB
  • Voltage : 240 V
  • Frequency : 50 Hz
  • Phase Single : Phase
  • Warranty : 1 Year Warranty
Description
The Spear 8 Litres Oil Free Air Compressor is a compact, low-noise, and maintenance-free solution for home and light workshop use. Powered by a durable 1 HP copper coil motor, it delivers an air flow rate of 135 LPM at a maximum pressure of 8 bar. Ideal for tyre inflation and spray painting, it features an oil-free design, making it suitable for clean air applications. Operating at a sound level of ≤ 60 dB, it ensures minimal disturbance, while the oil-free piston and cylinder system guarantees clean air output with no risk of oil contamination. Its lightweight (approx. 13 kg) and compact build make it easy to store and move around for various tasks including tyre inflation, spray painting, and light pneumatic tool operation. The diamond hardness-treated cylinders ensure extended durability, and the design promotes high efficiency with low energy consumption.

Features

 :
Oil-free piston and cylinder system
1 HP high-efficiency copper coil motor
Compact and lightweight (approx. 13 kg)
Durable diamond hardness-treated cylinders
Low vibration with dynamic balance and rubber feet
Energy-efficient with low power consumption
Maximum pressure of 8 bar (116 psi)
Single-phase 240V, 50Hz power supply compatible
Backed by a 1-year warranty

Applications

 :

The Spear 8 Litres Oil Free Air Compressor is designed for:

  • Spray Painting: Ideal for use with small paint guns requiring clean, oil-free compressed air.

  • Tyre Inflation: Suitable for inflating tyres of small cars, motorcycles, scooters, and bicycles.

  • Light Pneumatic Tools: Can be used with compatible low-consumption pneumatic tools for minor DIY or workshop tasks.

  • Dust Cleaning: Useful for blowing dust off workbenches, tools, or electronics with proper nozzle attachments.

Usage

 :
  1. Connect the Compressor to a 240 V single-phase power outlet.

  2. Ensure Air Outlet Tools (such as tyre inflators or spray guns) are securely attached.

  3. Switch On the Compressor using the power button or switch.

  4. Monitor Pressure Levels using the built-in pressure gauge. Do not exceed the rated 8 bar.

  5. Switch Off After Use and release pressure from the tank using the release valve.

  • Maintenance

  • Oil-Free Operation: No need to change or top up oil, reducing maintenance effort.

  • Check for Leaks regularly in hose connections and fittings.

  • Drain Moisture from the air tank periodically using the drain valve at the bottom of the tank.

  • Clean Air Filters (if present) every few months for optimal airflow.

  • Store Indoors in a dry environment to prevent rust and moisture damage.


  • Precautionary Guidance

  • Do Not Overload: Avoid using with high-demand air tools beyond its rated air flow capacity.

  • Avoid Continuous Operation: Let the motor rest periodically to prevent overheating.

  • Use in Well-Ventilated Areas: Ensure airflow around the unit for cooling.

  • Keep Away from Water: Do not expose to rain or use in wet conditions.

  • Read Manual Before Use: Follow all manufacturer instructions for safe operation.

  • Ensure Voltage Compatibility: Use only with a 240 V outlet.
