Brand: Oswal (Made in India)

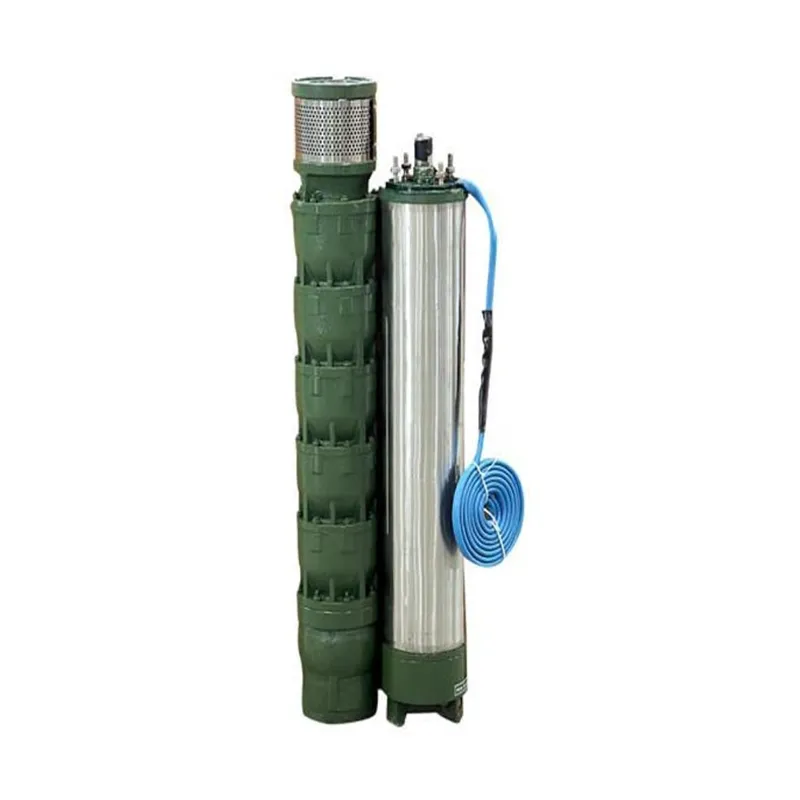

Oswal 5HP 5 Stage 5" Borewell Submersible Pump, Water Filled
SKU: RON-OS-21828
4965 people have viewed this recently
Delivery By: Jul 21 - Jul 23
MRP : ₹29650
4965 people have viewed this recently Delivery By: Jul 21 - Jul 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹29650 (Including GST)
Get Extra ₹445 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Oswal Borewell Pump
5inch Submersible Pump
2900RPM
Country of origin: India
Specifications
- Brand: Oswal (Made in India)
- Power : 5 hp
- Weight (Approx.) : 65 kg
- Flow Rate : 9 lpm
- Head : 29 meter
- Model No. : OS-5C-1PH
- Product Type : Borewell Pump
- Suitable For : 125 MM Boring
- Borewell Size : 5 Inches
- Head : 21 to 29 meters
- Output Capacity : 8.33 Litre per second
- Outlet Size : 65 MM
- Stage : 5
- Bore Outlet : 127 X 75 MM
- Efficiency : 0.55
- Motor Type : Mixed Filled, Water Filled
- Phase : Single Phase
- Power : 5 HP, 3.7KW
- Voltage : 220 V
- Speed : 2900 RPM
- Frequency : 50 Hz
- Current : 24 Amps
- Winding : Copper
- Class : B
- Degree of Protection : IP 68
- Method of Starting : Capacitor Start and Capacitor Run (CSCR)
- NRV Housing : Stainless Steel
- Impellers : Noryl
- Diffusers : Noryl
- Pump Jacket : Stainless Steel
- Pump Shaft : SS 410
- Suction inter Connector : Stainless Steel
- Coupling : SS 410
Description
The Oswal 5 HP single-phase submersible pump is an exceptional solution for efficient water lifting from borewells. Designed for durability and high performance, this pump is ideal for both residential and agricultural applications, ensuring a reliable water supply even in challenging conditions. Its innovative water-filled design enhances cooling and efficiency, allowing for smooth operation over extended periods.
Features
:- Superior Material of Construction, Easy Assembling and Dismantling, Rigid Cast Iron Parts, High grade Anti Corrosive Stainless Steel Stater pipe and Jacket of the pump, Impeller and diffusers are made of high grade engineering polymers, Polymers parts are protected by the metallic wear rings.
- Better efficiency and consistent performance, All rotating parts are dynamically balanced to ensures long life and thus saving cost of maintenance, Vibration free smooth operation.
- Designed to withstand wide voltage fluctuations thus preventing burning of motors at low voltage and even smooth operation at low voltage.
- Built In NRV reduces the friction losses, Bearing Sleeves are Hard chrome coating for longer life, Easy availability of the spare parts,Sand Guard prevents the ingress of impurities.
- Used for water supply domestic use, Flats, Societies, water supply, Used for Irrigation of small Farms, Hatcheries and Hotels.
