Brand: HT

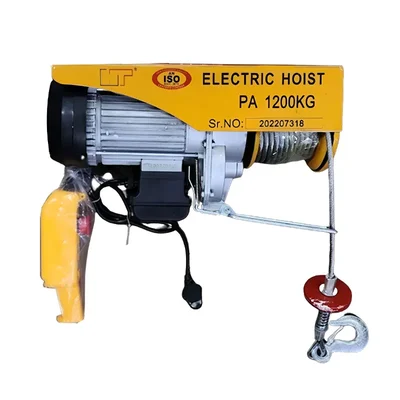

HT PA 1200 kg Electric Hoist With 2.5 HP Copper Winding Motor, 8 mm Diameter & 20 Meter Long Wire Rope
SKU: TI-HP-18078
₹12890 (Including GST)
MRP : ₹18000
Get extra ₹193 Discount (On Checkout)
Delivery By: May 7 - May 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HT PA 1200 kg Electric Hoist
Motor Power 2.5 HP & Input Power 2000 W
Wire Rope Length 20 Meter & Diameter 8 mm
Lifting Weight : Single Hook-600Kg, Double Hook-1200Kg
Lifting Height : Single Hook-20 m (2000 cm), Double Hook-10m (1000 cm)
Country of origin: China
Description
Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead. Electric chain hoists and electric wire rope hoists are the two primary varieties of electric hoists.
Features
:- With emergency stop switch
- Reinforced braking switch with position limit
- Protection class up to IP54
- With thermal prevention device
- Compact and small size design
- Long life span and high efficiency
- Applicable for most industry, business, handicraft industry and service industry
Specification
:- Brand: HT
- Power : 2.5 hp
- Weight (Approx.) : 30 kg
- Load Capacity : 1200 kg
- Phase : Single
- Product Type : Electric Hoist
- Model : PA-1200
- Brand : HT
- Motor Power : 2.5 HP
- Input Power : 2000 W
- Phase : Single Phase
- Working : Remote Controlled
- Lifting Height : Single Hook-20 m (2000 cm), Double Hook-10m (1000 cm)
- Lifting Speed : Single & Double Hook : 18 m/min
- Rated Voltage : 220-240 V
- Frequency : 50Hz
- Lifting Weight : Single Hook-600Kg, Double Hook-1200Kg
- Wire Rope Diameter : 8 mm
- Wire Rope Length : 20 meter (2000 cm)
- Hoisting Speed : 18 meter / minute
- Continuous Working Capacity : 2 hours (Approx.)
Applications
:- Warehouses, automotive servicing , machine shops, manufacturing facilities, factories ,building sites and railroad construction.
Accessories
:- 1 Electric Hoist
- 1 Electric Hoist Remote
- 1 Eye Hook
- 1 Pulley Hook.
- 20 m Wire Rope
- Mounting Case
- Nutbolts and Clamps
