HT PA 1500 kg Mini Electric Hoist with 3.0 HP 100 % Copper Winding Motor, 8 mm diameter & 20 meter Wire Rope

Brand: HT

HT PA 1500 kg Mini Electric Hoist with 3.0 HP 100 % Copper Winding Motor, 8 mm diameter & 20 meter Wire Rope

Name: HT PA 1500 kg Mini Electric Hoist with 3.0 HP 100 % Copper Winding Motor, 8 mm diameter & 20 meter Wire Rope
Brand: HT
SKU: TI-HP-51061
Price: 12299 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-HP-51061

MRP : ₹18500 ₹12299

34% OFF!

Get Extra ₹184 OFF on Prepaid Orders

Delivery By: Dec 9 - Dec 11

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹12299 (Including GST)

MRP : ₹18500

34% OFF!

Get Extra ₹184 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

HT PA 1500 kg Mini Electric Hoist with 3.0 HP 100 % Copper Winding Motor, 8 mm diameter & 20 meter Wire Rope

Best Quality

Easy To Use

3 Hp Powerful Motor

20 Meter Long Wire Rope

1500 / 1.5 Ton Heavy Load Capacity

Country of origin: China

Brand: HT
Power : 3 hp
Weight (Approx.) : 28.5 kg
Load Capacity : 1500 kg
Phase : Single

Power : 3 hp
Load Capacity : 1500 kg
Phase : Single
Product Type : Electric Hoist
Model : PA-1500
Motor Power : 3 HP
Working : Remote Controlled
Lifting Height : Single Hook-20 meter & Double Hook-10 meter
Lifting Speed : Single & Double Hook : 18 m/min
Rated Voltage : 220-240 V
Frequency : 50Hz
Wire Rope Length : 20 meter
Wire Rope Dia. : 8 mm
Lifting Weight : Single Hook-750Kg, Double Hook-1500Kg
Continuous Working Capacity : 2 hours (Approx.)

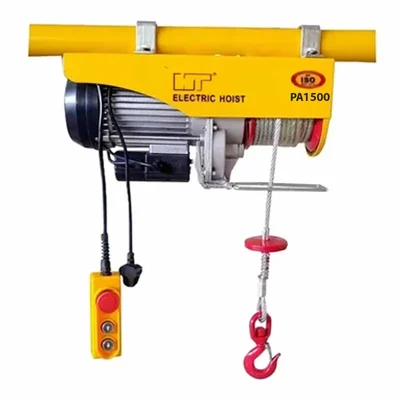

The HT PA 1500 kg Electric Hoist is a robust industrial lifting device designed for heavy-duty applications in warehouses, construction sites, and manufacturing facilities. It features a powerful 3.0 HP motor with copper windings for efficient, reliable operation and reduced energy loss. The hoist is equipped with an 8 mm diameter wire rope, 20 meters long, providing ample reach and strength for lifting loads up to 1500 kg at controlled speeds.

Features

Motor and Performance : The 3.0 HP copper winding motor ensures smooth, quiet operation with high torque output, minimizing overheating and extending lifespan. It supports variable speed control for precise lifting and lowering.
Wire Rope Specifications : 8 mm diameter galvanized steel wire rope, 20 meters in length, offers excellent tensile strength (typically rated for over 10,000 kg breaking load) and corrosion resistance, ideal for outdoor or harsh environments.
Safety and Design : Includes overload protection, emergency stop mechanisms, and a compact, lightweight frame for easy installation on cranes or monorails.
